Battery & Electric System

989-1123

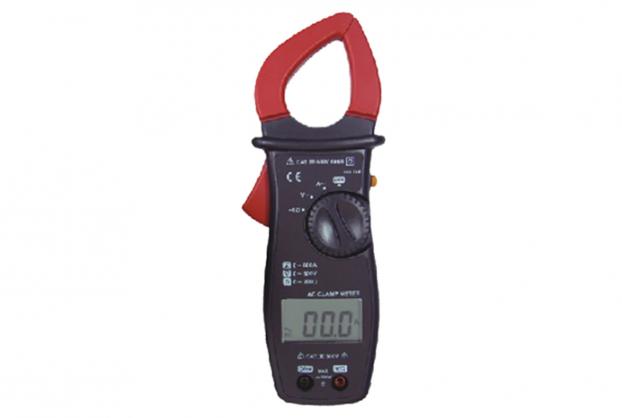

600A Autoranging AC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•3-3/4 For electrical measurements on civil and industrial plant.
•3-1/2 digits LCD with maximum reading 1999, Plus decimal point, unit symbol indication. Auto Range. Auto power off.
•Low Battery Indication: Replace battery as LCD display.
•Test Ranges: DCV, ACV, ACA, Ω, Diode, Continuity.
•Sampling Rate: 2 times per second for digital display.
•Overload Indication: LCD will show “ 1 ” in the upper left position.
•Function keys: Data Hold.
•The maximum conductor size is 30mm.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: LR6 / Size: AA 1.5V.
•Battery Life: approx. 200 hours.
•Dimension: 218 x 75 x 43mm (L x W x H).
•3-3/4 For electrical measurements on civil and industrial plant.
•3-1/2 digits LCD with maximum reading 1999, Plus decimal point, unit symbol indication. Auto Range. Auto power off.
•Low Battery Indication: Replace battery as LCD display.
•Test Ranges: DCV, ACV, ACA, Ω, Diode, Continuity.
•Sampling Rate: 2 times per second for digital display.
•Overload Indication: LCD will show “ 1 ” in the upper left position.
•Function keys: Data Hold.
•The maximum conductor size is 30mm.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: LR6 / Size: AA 1.5V.
•Battery Life: approx. 200 hours.
•Dimension: 218 x 75 x 43mm (L x W x H).
