989-1802

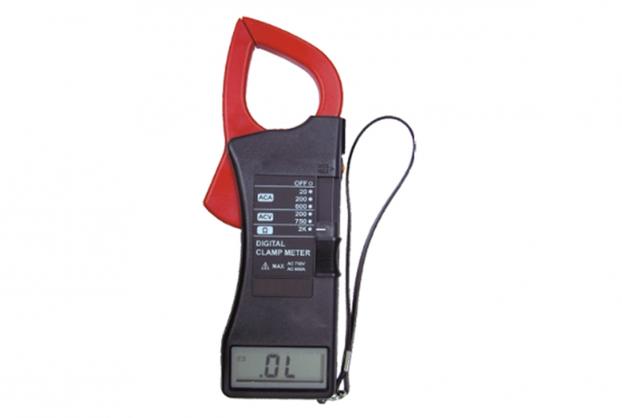

600A AC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•Display: 3 1/2 digits LCD with maximum reading 2000, plus decimal point, unit symbol indication.
•Low Battery Indication: Replace battery immediately when LCD displays.
•The maxi conductor size is 35mm.
•Test Ranges: ACA, ACV, Ω.
•Function Keys: Data Hold.
•Sampling Rate: 3 times per second.
•Operating Temperature & Humidity: 0ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P x 1pc.
•Battery life: about 200 hours.
•Dimension: 209 x 77 x 36 mm (L x W x H).

•Display: 3 1/2 digits LCD with maximum reading 2000, plus decimal point, unit symbol indication.
•Low Battery Indication: Replace battery immediately when LCD displays.
•The maxi conductor size is 35mm.
•Test Ranges: ACA, ACV, Ω.
•Function Keys: Data Hold.
•Sampling Rate: 3 times per second.
•Operating Temperature & Humidity: 0ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P x 1pc.
•Battery life: about 200 hours.
•Dimension: 209 x 77 x 36 mm (L x W x H).
