PRODUCTS

Battery & Electric System

989-1121 / 989-1122

AC Clamp-On Meter
← →
Qty :
Add to Inquiry List

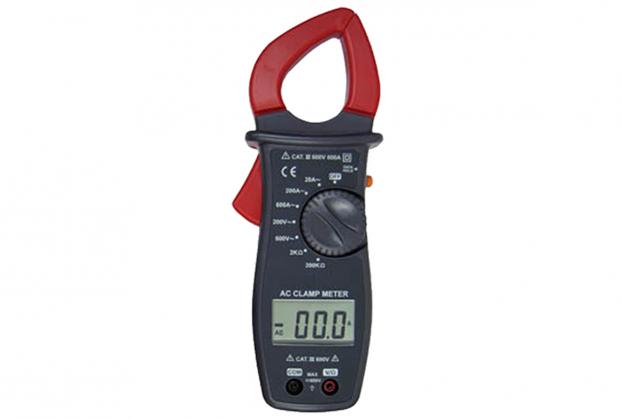

989-1121  600A AC Clamp-On Meter
•Display: 3 1/2 digits LCD with max. reading 1999, plus decimal point, unit symbol.
•The maximum conductor size is 35mm.
•Function Keys: Data Hold.
•Overload Indication.
•Test Ranges: ACA, ACV, Ω.

989-1122  600A True RMS AC Clamp-On Meter
•989-1122 with True RMS measurements.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery: 9V NEDA 1604 IEC 6F22 JIS 006P x 1pc.
•Battery life: approx. 200 hours.
•Low Battery Indication.
•Dimension: 218 x 75 x 43 mm (L x W x H).
989-1121  600A AC Clamp-On Meter
•Display: 3 1/2 digits LCD with max. reading 1999, plus decimal point, unit symbol.
•The maximum conductor size is 35mm.
•Function Keys: Data Hold.
•Overload Indication.
•Test Ranges: ACA, ACV, Ω.

989-1122  600A True RMS AC Clamp-On Meter
•989-1122 with True RMS measurements.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery: 9V NEDA 1604 IEC 6F22 JIS 006P x 1pc.
•Battery life: approx. 200 hours.
•Low Battery Indication.
•Dimension: 218 x 75 x 43 mm (L x W x H).
back to list
