989-1016

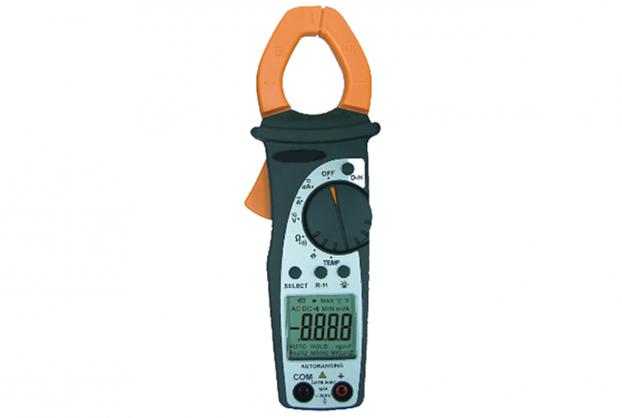

400A HVAC Autoranging AC Clamp-On
← →
Qty :
Add to Inquiry List
•Back light 3 3/4 digits LCD w/maxi reading 3999 plus decimal point, unit symbol indication.
•Polarity Indication.
•Function keys: Select, Data Hold, Range Hold.
•Test ranges: ACuA, DCuA, ACA, DCV ACV, Ω, Continuity, Capacitance, Temperature.
•Auto Range/Power Off.
•The maximum conductor size is 30mm.
•Overload Indication.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: R03 (AB)/SIZE AAA 1.5V/UM4 battery x 2 pcs.
•Battery Life: 100 hours approx.
•Low Battery Indication.
•Dimension: 205 x 64 x 39mm (L x W x H).

•Back light 3 3/4 digits LCD w/maxi reading 3999 plus decimal point, unit symbol indication.
•Polarity Indication.
•Function keys: Select, Data Hold, Range Hold.
•Test ranges: ACuA, DCuA, ACA, DCV ACV, Ω, Continuity, Capacitance, Temperature.
•Auto Range/Power Off.
•The maximum conductor size is 30mm.
•Overload Indication.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Battery type: R03 (AB)/SIZE AAA 1.5V/UM4 battery x 2 pcs.
•Battery Life: 100 hours approx.
•Low Battery Indication.
•Dimension: 205 x 64 x 39mm (L x W x H).
