Battery & Electric System

989-1816

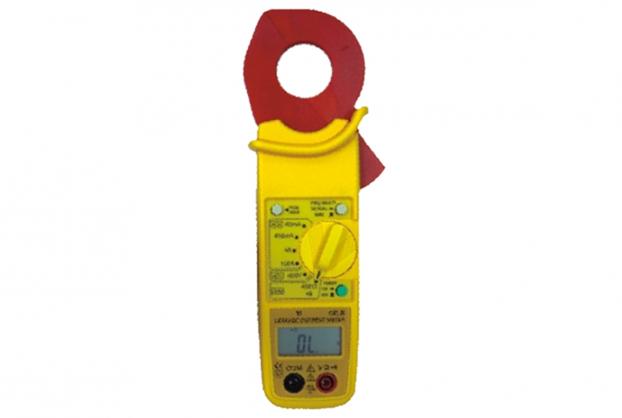

100A Leakage AC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•3-3/4 digits LCD w/maximum reading 4000, Plus decimal point, unit symbol indication.
•Alternative for supply frequency.
•IEC1010-1 and IEC1010-1-32 CAT III 600V.
•Function keys: Peak Hold.
•Low Battery Indication.
•Test Ranges: ACV, ACA, Ω, Continuity.
•With LPF (Low Pass Filter) function.
•Overload Indication.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1pc.
•Battery Life: About 200 hours.
•Operating Temperature & Humidity: -10ºC ~ 50ºC, below 80%RH.
•Storage Temperature & Humidity: -20ºC ~ 60ºC, below 70%RH.
•Dimension: 250 x 85 x 35mm (L x W x H).
•3-3/4 digits LCD w/maximum reading 4000, Plus decimal point, unit symbol indication.
•Alternative for supply frequency.
•IEC1010-1 and IEC1010-1-32 CAT III 600V.
•Function keys: Peak Hold.
•Low Battery Indication.
•Test Ranges: ACV, ACA, Ω, Continuity.
•With LPF (Low Pass Filter) function.
•Overload Indication.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1pc.
•Battery Life: About 200 hours.
•Operating Temperature & Humidity: -10ºC ~ 50ºC, below 80%RH.
•Storage Temperature & Humidity: -20ºC ~ 60ºC, below 70%RH.
•Dimension: 250 x 85 x 35mm (L x W x H).
