Battery & Electric System

989-1805

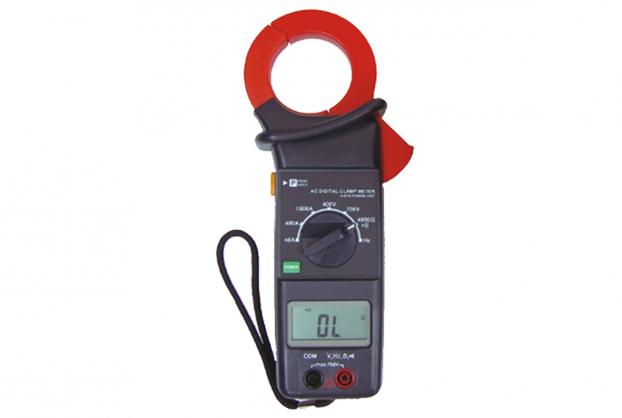

1000A AC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•3-3/4 digits LCD with maximum reading 4000, Plus decimal point, unit symbol indication.
•Maxi conductor size is 35mm.
•IEC1010-1 and IEC1010-2-32 CAT III 1000V.
•Auto Power OFF.
•Function keys: Peak Hold.
•Test Ranges: ACV, ACA, Ω, Frequency, Continuity.
•Non-contact frequency measurement.
•Overload Indication.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery.
•Battery Life: approx. 200 hours.
•Low Battery Indication.
•Dimension: 250 x 70 x 35mm (L x W x H).
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.

•3-3/4 digits LCD with maximum reading 4000, Plus decimal point, unit symbol indication.
•Maxi conductor size is 35mm.
•IEC1010-1 and IEC1010-2-32 CAT III 1000V.
•Auto Power OFF.
•Function keys: Peak Hold.
•Test Ranges: ACV, ACA, Ω, Frequency, Continuity.
•Non-contact frequency measurement.
•Overload Indication.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery.
•Battery Life: approx. 200 hours.
•Low Battery Indication.
•Dimension: 250 x 70 x 35mm (L x W x H).
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
