Battery & Electric System
989-1124 / 989-1125

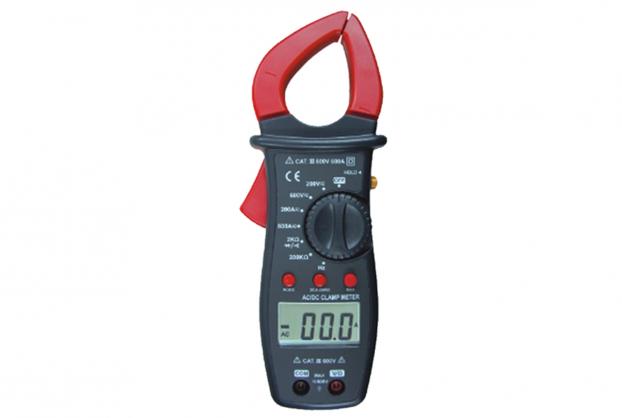

AC/DC Clamp-On Meter
989-1125 600A True RMS AC/DC Clamp-On Meter
989-1124 600A AC/DC Clamp-On Meter
•Back light 3 1/2 digits LCD with maximum reading 1999 plus decimal point.
•989-1125 with True RMS measurements
•Test Ranges: ACV, ACA, DCV, DCA, Ω, Frequency, Diode Test, Continuity. IEC 1010-1 and IEC1010-2-32 CAT III 600V.
•Function Keys:
Data Hold, Max. Hold (989-1124).
Peak Hold (989-1125).
•Battery: 9V NEDA 1604, IEC 6F22, JIS 006P.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Dimension: 218 x 75 x 43 mm (L x W x H)
989-1125 600A True RMS AC/DC Clamp-On Meter
989-1124 600A AC/DC Clamp-On Meter
•Back light 3 1/2 digits LCD with maximum reading 1999 plus decimal point.
•989-1125 with True RMS measurements
•Test Ranges: ACV, ACA, DCV, DCA, Ω, Frequency, Diode Test, Continuity. IEC 1010-1 and IEC1010-2-32 CAT III 600V.
•Function Keys:
Data Hold, Max. Hold (989-1124).
Peak Hold (989-1125).
•Battery: 9V NEDA 1604, IEC 6F22, JIS 006P.
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Dimension: 218 x 75 x 43 mm (L x W x H)
