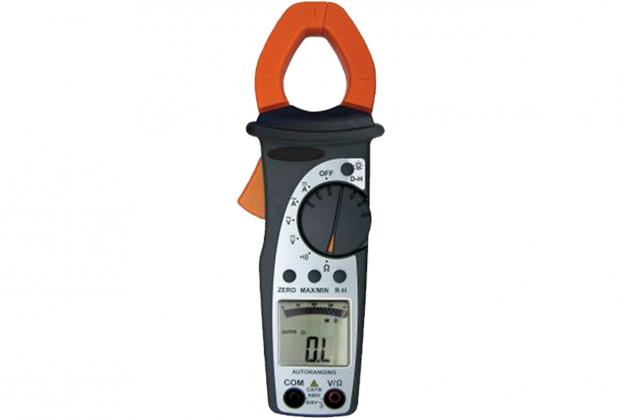

400A Autoranging AC/DC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•3-3/4 digits LCD with maximum reading 3999 plus decimal point, unit symbol indication.
•Auto Range, Auto Power Off (30 minutes).
•Low Battery Indication: Replace battery when LCD display.
•Function keys: Max/Min Hold, Data Hold, Range Hold, Auto Zero.
•Test ranges: ACV, ACA, DCV, DCA, Ω, Continuity.
•The maximum conductor size is 30mm.
•Double injection / Back light.
•When Impedance in circuit is below 40Ω, the buzzer will sound.
•Battery type: R03 (AB)/SIZE AAA 1.5V/UM4 battery x 2 pcs.
•Battery Life: 50 hours approx. (alkaline battery recommended)
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Dimension: 205 x 64 x 39mm (L x W x H).
•3-3/4 digits LCD with maximum reading 3999 plus decimal point, unit symbol indication.
•Auto Range, Auto Power Off (30 minutes).
•Low Battery Indication: Replace battery when LCD display.
•Function keys: Max/Min Hold, Data Hold, Range Hold, Auto Zero.
•Test ranges: ACV, ACA, DCV, DCA, Ω, Continuity.
•The maximum conductor size is 30mm.
•Double injection / Back light.
•When Impedance in circuit is below 40Ω, the buzzer will sound.
•Battery type: R03 (AB)/SIZE AAA 1.5V/UM4 battery x 2 pcs.
•Battery Life: 50 hours approx. (alkaline battery recommended)
•Operating Temperature & Humidity: 5ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Dimension: 205 x 64 x 39mm (L x W x H).
