Battery & Electric System

989-1803

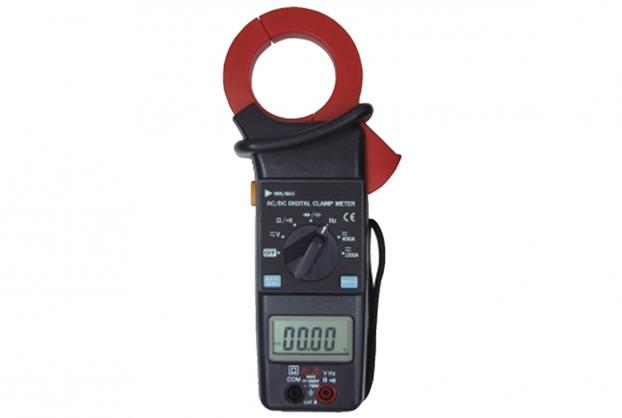

1200A AC/DC Clamp-On Meter
← →
Qty :
Add to Inquiry List
•3-3/4 digits LCD with maximum reading 3999, plus decimal point, unit symbol indication.
•Overload Indication.
•Function keys: Min/Max Hold. Auto Zero.
•Test Ranges: ACV, ACA, DCV, DCA, Ω, Capacitance, Frequency, •Diode, Continuity.
•Polarity Indication.
•Auto Power OFF.
•The maximum conductor size is 52mm
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1.
•Battery Life: approx. 100 hours.
•Low Battery Indication.
•Operating Temperature & Humidity: 0ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Size: 221 x 62 x 35 mm (L x W x H)

•3-3/4 digits LCD with maximum reading 3999, plus decimal point, unit symbol indication.
•Overload Indication.
•Function keys: Min/Max Hold. Auto Zero.
•Test Ranges: ACV, ACA, DCV, DCA, Ω, Capacitance, Frequency, •Diode, Continuity.
•Polarity Indication.
•Auto Power OFF.
•The maximum conductor size is 52mm
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1.
•Battery Life: approx. 100 hours.
•Low Battery Indication.
•Operating Temperature & Humidity: 0ºC ~ 40ºC, below 80%RH.
•Storage Temperature & Humidity: -10ºC ~ 60ºC, below 70%RH.
•Size: 221 x 62 x 35 mm (L x W x H)
