989-1000

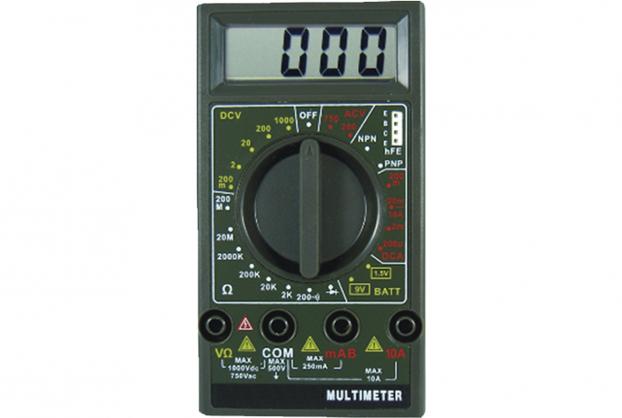

Multimeter
← →
Qty :
Add to Inquiry List
•3-1/2  digits LCD max. reading 2000. With maximum reading 2000 counts.
•Automatic polarity indication.
•Input impedance: 10MΩ Max.
•Input voltage: 1000Vdc, 750V AC rms.
•Frequency: 40Hz ~ 400Hz.
•Overload protection: 750V rms.
•Indication: Average respond, RMS of sine wave.
•Maximum input current: 10A.
•Dimension: Size: 128 x 72 x 36 mm (L x W x H).
•Battery Life: approx. 100 hours.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1pc.
•Overload protection: F250mA/250V fuse (Range 10A unfused).

•3-1/2  digits LCD max. reading 2000. With maximum reading 2000 counts.
•Automatic polarity indication.
•Input impedance: 10MΩ Max.
•Input voltage: 1000Vdc, 750V AC rms.
•Frequency: 40Hz ~ 400Hz.
•Overload protection: 750V rms.
•Indication: Average respond, RMS of sine wave.
•Maximum input current: 10A.
•Dimension: Size: 128 x 72 x 36 mm (L x W x H).
•Battery Life: approx. 100 hours.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery x 1pc.
•Overload protection: F250mA/250V fuse (Range 10A unfused).
