989-3220

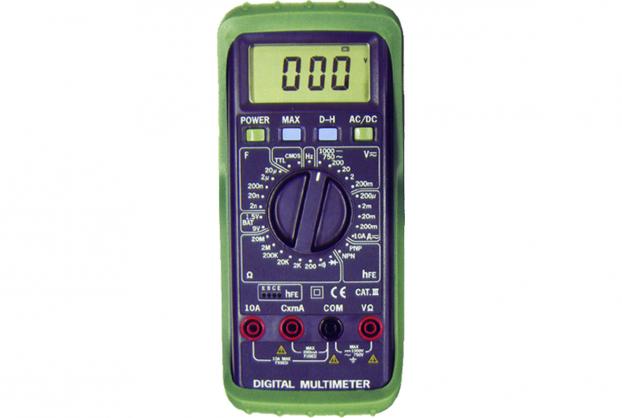

Multimeter
← →
Qty :
Add to Inquiry List
•3-1/2 digits LCD with maximum reading of 2000, plus decimal point, unit symbol indication.
•Polarity Indication.
•Overload Indication.
•IEC 1010-1 CAT III 1000V.
•Function keys: D-H, MAX.
•Test ranges: ACV, DCV, DCA, ACA, Ω, Diode, Transistor, Frequency, Continuity, Battery, Logic Capacitance.
•Sampling Rate: 2.5 times per second for digital display.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery.
•Battery Life: approx. 100 hours.
•Low Battery Indication.
•Dimension: 186 x 86 x 39mm (L x W x H)

•3-1/2 digits LCD with maximum reading of 2000, plus decimal point, unit symbol indication.
•Polarity Indication.
•Overload Indication.
•IEC 1010-1 CAT III 1000V.
•Function keys: D-H, MAX.
•Test ranges: ACV, DCV, DCA, ACA, Ω, Diode, Transistor, Frequency, Continuity, Battery, Logic Capacitance.
•Sampling Rate: 2.5 times per second for digital display.
•Battery type: 9V NEDA 1604 IEC 6F22 JIS 006P battery.
•Battery Life: approx. 100 hours.
•Low Battery Indication.
•Dimension: 186 x 86 x 39mm (L x W x H)
