Battery & Electric System
113-1941 / 113-1942 / 113-1943 / 113-1944
Socket Tester (For UK)

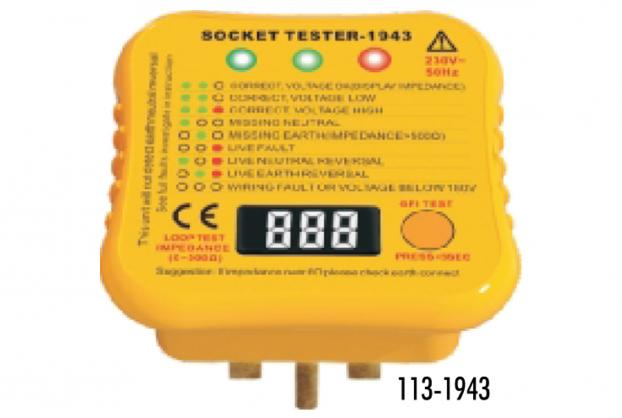

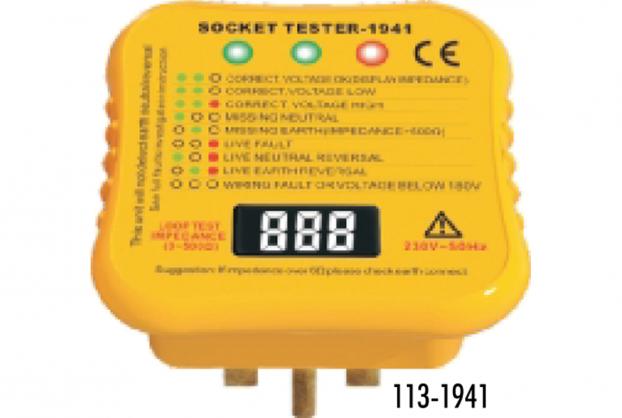

•113-1941 / 113-1943:---
•Test for 180-250 VAC circuits.
•Detect faulty wiring status in 3 wire receptacle.
•Checks the earth loop impedance of the wiring under test and indicates the range that the measured earth loop impedance falls within.
•This socket tester will give indication as well if the main voltage is below 210V or above 250V.
•It could perform self test after plug-in.
•30mA leakage current measurement (113-1943).

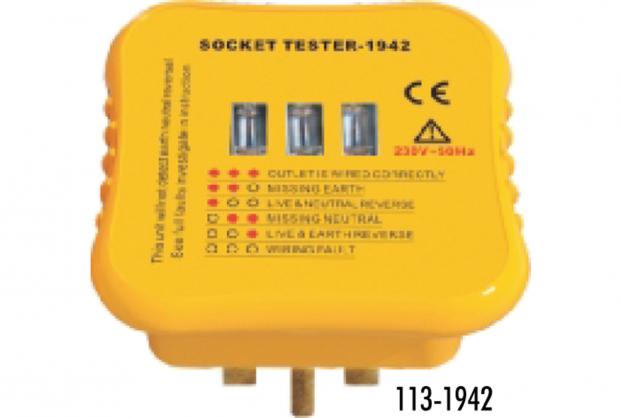

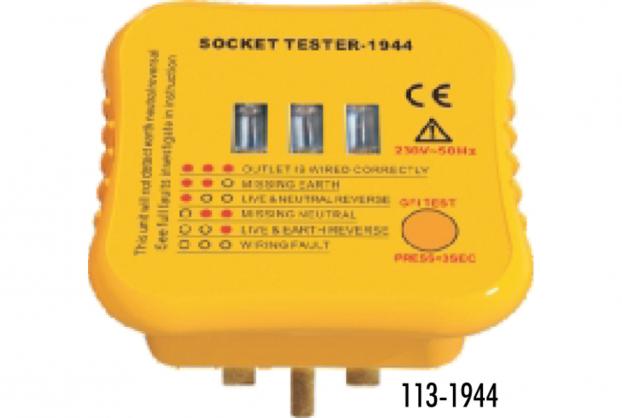

•113-1942 / 113-1944:---
•Test for 230 VAC circuits.
•Detect faulty wiring status in 3 wire receptacle.
•Various combinations of 3 neon indicators tell if wiring if OK or 6 possible faulty conditions.
•30mA leakage current measurement (113-1944).
•113-1941 / 113-1943:---
•Test for 180-250 VAC circuits.
•Detect faulty wiring status in 3 wire receptacle.
•Checks the earth loop impedance of the wiring under test and indicates the range that the measured earth loop impedance falls within.
•This socket tester will give indication as well if the main voltage is below 210V or above 250V.
•It could perform self test after plug-in.
•30mA leakage current measurement (113-1943).
•113-1942 / 113-1944:---
•Test for 230 VAC circuits.
•Detect faulty wiring status in 3 wire receptacle.
•Various combinations of 3 neon indicators tell if wiring if OK or 6 possible faulty conditions.
•30mA leakage current measurement (113-1944).
