New Products

928-5895 / 928-5896 / 928-5897 / 928-5898

Pulling Device for Silentblocs

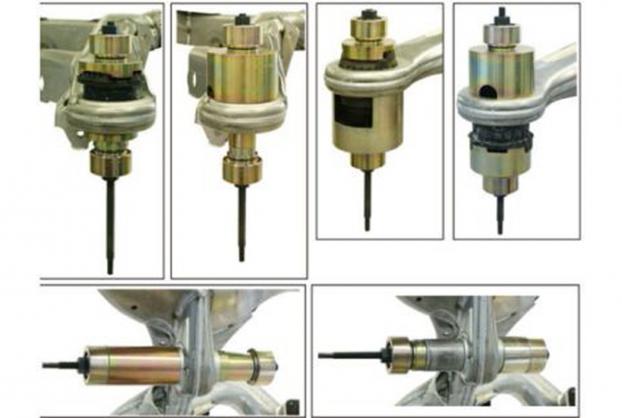

•The mechanical pulling device enables the quick removal and installation of all silentblocs on the rear sub-frame (Including differential mounting bushings) without removing the rear axle sub-frame from the vehicle.
•Suitable for Mercedes-Benz E-Class (W211) rear axle sub-frame.

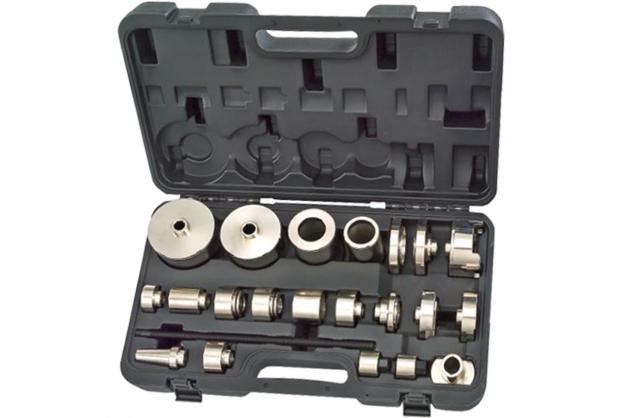

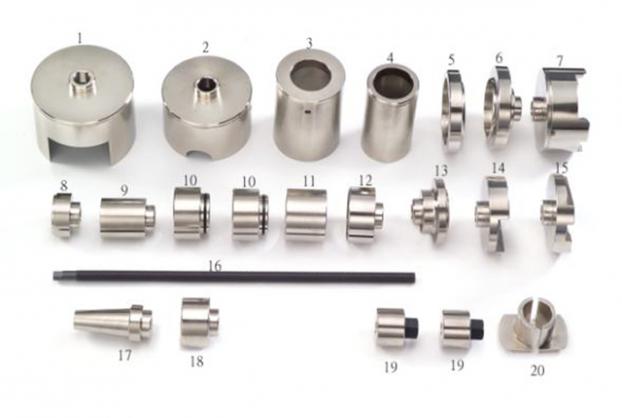

•928-5895: Pulling device for MB W211, mechanical.
 2pcs Retainer adaptor for mechanical spindle (part no. 10).
 1pc Pulling spindle M14 (part no. 16).
 2pcs Axle-bearing (part no. 19).
 1pc rubber for bearing sleeve ø75.5 / ø90 (W211).
 1pc sleeves for differential bearing ø66 (W211).
 1pc sleeves for suspension arm / wishbone ø51 (211).

•928-5896: Set of rubber for bearing sleeve ø75.5 / ø90 (W211).
 1pc Support sleeve (part no. 1).
 1pc Support sleeve (part no. 2).
 1pc Press piece (part no. 7).
 1pc Extension for adaptor 50mm with O-ring (part no. 9).
 1pc Support sleeve (part no. 13).
 1pc Press piece (part no. 14).
 1pc Press piece (part no. 15).
 1pc Mandrel (part no. 17).
 1pc Press piece (part no. 18).
 1pc Tension segment (part no. 20).

•928-5897: Set of sleeves for differential bearing ø66 (W211).
 1pc Press / Support sleeve long ø80 (part no. 3).
 1pc Support ring (part no. 5).
 1pc Support sleeve (part no. 6).
 1pc Press sleeve (part no. 12).

•928-5898: Set of sleeves for suspension arm / wishbone ø51 (W211)
 1pc Press / Support sleeve long ø60 (part no. 4).
 1pc Press piece (part no. 8).
 1pc Extension for adaptor 50mm with O-ring (part no. 9).

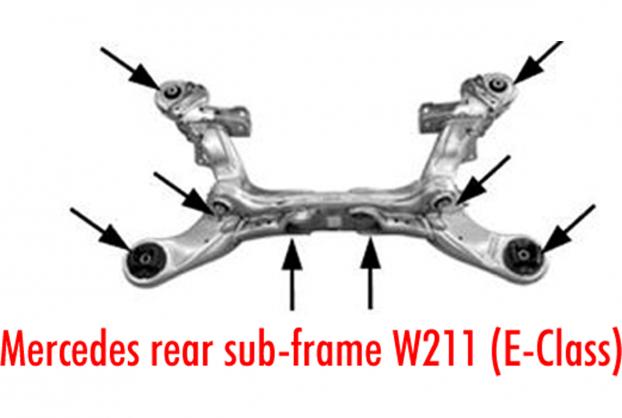

 1pc Press / Support sleeve short ø60 (part no. 11). Mercedes rear sub-frame W211 (E-Class).
 Spring (part no. 7).

•The mechanical pulling device enables the quick removal and installation of all silentblocs on the rear sub-frame (Including differential mounting bushings) without removing the rear axle sub-frame from the vehicle.
•Suitable for Mercedes-Benz E-Class (W211) rear axle sub-frame.

•928-5895: Pulling device for MB W211, mechanical.
 2pcs Retainer adaptor for mechanical spindle (part no. 10).
 1pc Pulling spindle M14 (part no. 16).
 2pcs Axle-bearing (part no. 19).
 1pc rubber for bearing sleeve ø75.5 / ø90 (W211).
 1pc sleeves for differential bearing ø66 (W211).
 1pc sleeves for suspension arm / wishbone ø51 (211).

•928-5896: Set of rubber for bearing sleeve ø75.5 / ø90 (W211).
 1pc Support sleeve (part no. 1).
 1pc Support sleeve (part no. 2).
 1pc Press piece (part no. 7).
 1pc Extension for adaptor 50mm with O-ring (part no. 9).
 1pc Support sleeve (part no. 13).
 1pc Press piece (part no. 14).
 1pc Press piece (part no. 15).
 1pc Mandrel (part no. 17).
 1pc Press piece (part no. 18).
 1pc Tension segment (part no. 20).

•928-5897: Set of sleeves for differential bearing ø66 (W211).
 1pc Press / Support sleeve long ø80 (part no. 3).
 1pc Support ring (part no. 5).
 1pc Support sleeve (part no. 6).
 1pc Press sleeve (part no. 12).

•928-5898: Set of sleeves for suspension arm / wishbone ø51 (W211)
 1pc Press / Support sleeve long ø60 (part no. 4).
 1pc Press piece (part no. 8).
 1pc Extension for adaptor 50mm with O-ring (part no. 9).
 1pc Press / Support sleeve short ø60 (part no. 11). Mercedes rear sub-frame W211 (E-Class).
 Spring (part no. 7).
