•Suitable for Mercedes-Benz CDI diesel engine.

•Easy extracting the damaged / seized glow plugs on many modern diesel engines.

•Without removing cylinder head & avoid to damaged cylinder head casting.

•1) Choose the No. 4 socket, install it onto the glow plug, use a hammer to fix the socket with glow plug head, then try to remove the glow plug with 3/8" DR spanner.

•2) This tool is especially for the situation when removing the glow plug, but there is only head is removed, then please use the other accessories to remove the rest glow plug from glow plug hole and replace a new one.

•3) Insert No. 6 tube into the glow plug hole, then insert a (No. 10) Ø3.5 drill into No.6 tube then drill a hole with air tool.

•4) Separate the No. 9 device and only choose the cone center tool and install it into the glow plug hole. Choose suitable drill from No.2 ( 7 x 4.2 or 9 x4.2), inert the drill into No.8 drill installer. It is important to use No.5 (3mm alley key) to lock the screw on drill installer. Then install it into cone center tool, and connect with air tool to drill and also remove the hex nut from glow plug.

•5) Before working the next step, please use the air gun to clean all the metal scrap from drilling.

•6) Choose the tap M5x0.8P from No. 7, insert it into No. 1 T-handle. Install it into glow plug hole and turn the T-handle clockwise for drilling. After work, just adjust the key on T-handle and remove the T-handle anti-clockwise.

•7) Choose tool No. 9, there are a hex 12mm bolt and a 30mm hex nut & a cone center tool. Screw No. 12 bolt (M5 x 0.8P) into the hex 12mm bolt and use a 9mm spanner to tighten No.12 bolt. Install the cone center tool and hex 12mm bolt into glow plug hole; then screw M30 hex nut properly. Use M12 spanner to FIX hex 12 bolt head and use M30 spanner to turn M30 hex nut clockwise to extract the rest part of glow plug.

•8) Choose a tap (M10 x P 1.0 or M8 x 1.0) from No. 7, install it with T-handle, and tap the glow plug hole.

•9) Remove the T-handle and replace the new glow plug. Then the work is doneGlow plug drilling set

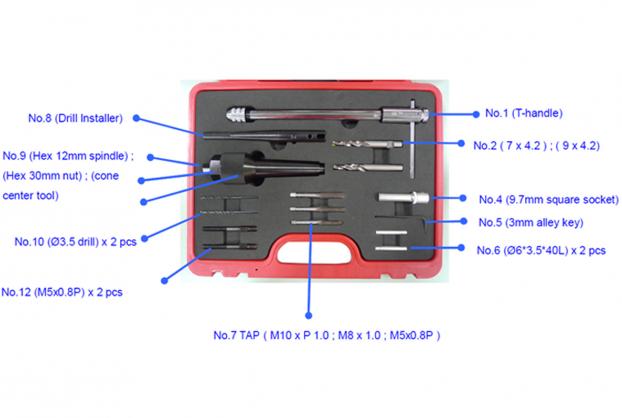

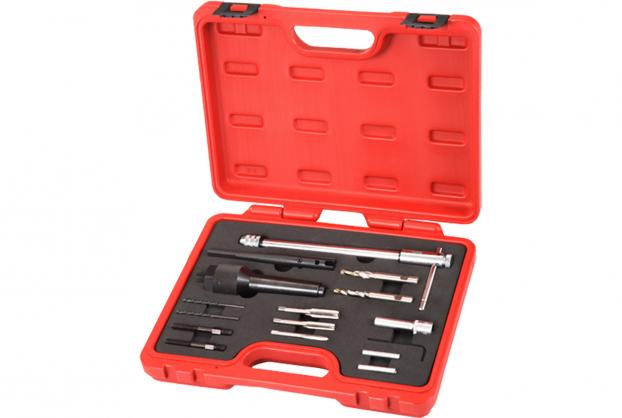

•Set contents: No. 1 (T-handle), No. 2 (7 x 4.2mm) and (9 x 4.2mm), No. 4 (9.7mm square socket), No. 5 (3mm alley key), No. 6 (Ø6 x 3.5 x 40L) x 2 pcs, No. 7 TAP M10 x P1.0; M8 x 1.0; M5 x 0.8P, No. 8 Drill Installer, No. 9 Hex 12mm spindle; Hex 30mm nut; cone center tool, No. 10 Ø3.5 drill x 2 pcs, No.12 M5 x 0.8P x 2 pcs.
