•Application: Deutz engine, Merc, Volvo, Man, Renault, Dsf, Iveco.

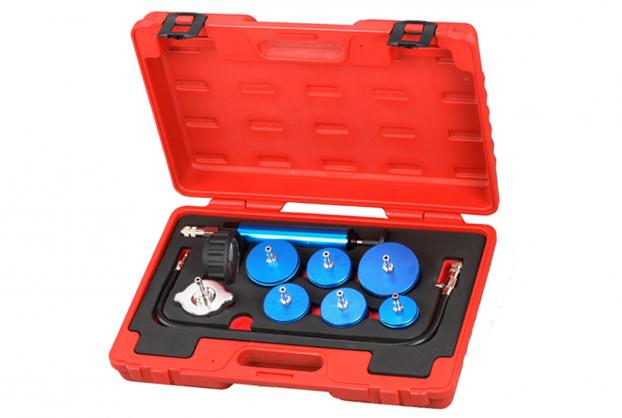

•Tester contents 1pc Pressure Testing Pump with Gauge, 1pc Connect Hose, 6pcs Adapters.

   1.) Pressure testing pump with gauge.

   2.) Connect Hose.

   3.) Deutz enging (1015), Merc (Sprinter -2006, Vito -2006).

   4.) Volvo FH12 1993-

   5.) Man L2000 1993-2000, TGA 2000-.

   6.) DAF LF55 2001-, Iveco (Euro Cargo 1991-, Euro Star 1993-2001, Euro Tech 1993-2001, Euro Trakker 1993-2001, Euro Trakker Cursor 2002-, Euro Trakker Cursor 13 2001-, Euro Truck, Strails Cursor 2002-), Man (E2000 2000-, F 2000 1995-2003, F 90 1987-1996, TGA/L/M/S 2005-), Merc (Actros 1997-, Atego 1998-, Axor 2001-, Eco 8401, lkw 1728), Volvo (FH12 1993-, FL 2000-, FM 1998-).

   7.) DAF (XF95 2002-2006, XF 105 2005-), ERF (EC Range 1996-2003).

   8.) Renault Kerax 1999-, Magnum 1990-2003, Midum 2000-, Premium 1997-.

   9.) Scania 4 Series 1995-2004, 93, 94 1996-2004, 113, 114 1995-2004, 124 1996-2004, 144 1996-2002, 164 1999-2004).



•Operation Instructions:---

•Remove the original radiator cap while the engine is cold. Choose an test cap suiting the connection type onto the radiator.

•Screw the cap onto the radiator opening . (Fig.1)

•Connect the pump to the test cap through the quick coupling at the hose end.

•Pump until pressure is approximately 10~15 psi (Fig.2). If the gauge pointer does not move for approximately 1 minute, the whole circuit is perfectly efficient; if it goes down, the circuit leaks, where water is discharged. If the gauge goes down and no fluid discharges can be located, check whether the engine head gasket is worn.

•CAUTION: please avoid the pressure up to the 35 psi.

•Finally, release pressure through the button next to the quick coupling, and put away the device, after removing any fluid or dirt.



•Safety Precaustion:---

•DO NOT start engine before / during the pressure test to aviod getting burnt.

•Always wear hand gloves when work with this tool.

•Please ensure the radiator coolant is cool before operating (It could determine it with thermometer).
