Ford/GM/Chrysler Repair Tools

914-5944

17 Parts Engine Timing Tool For Ford

• The associated tool for using with a number of Ford setting / locking kit is
  for locking the crankshaft in the timed position by locating into the flywheel.
• Suitable for counter - holding the crankshaft when releasing or tightening
  the crankshaft pulley bolts.
• Use on a wide range of Ford engine, particularly 1.8 TDDi/TDCi and
  2.0 TDCi diesel, 1.6 Ti-VCT and later 1.25/1.4 16v duratec petrol engines.
• This engine timing tool kit is suitable for Ford Focus 1.4/1.6 TDCi
  chain engine with engine code G8DA, G8DB, HNDA 2004 - 2006.
• Primarily offer late Ford petrol engine coverage and include some
  Volvo 1.8 and 2.0 engines.

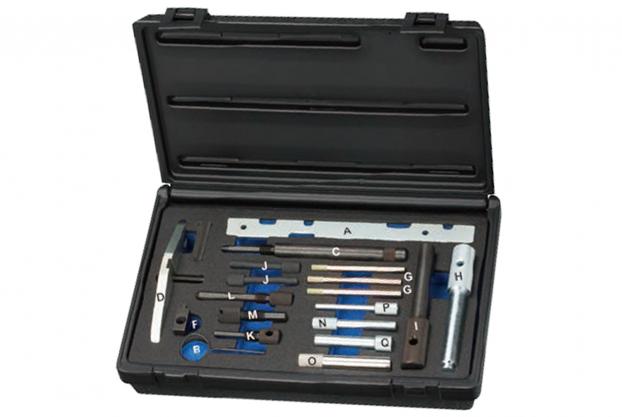

• Kit includes camshaft alignment tool, crankshaft timing tool and flywheel locking tool.

• Application:---
  Ford C-MAX (07-12), Fiesta / Fusion (08-12), Focus (98-12), Focus / C-MAX (03-07),
          Galaxy (06-12), Grand C-MAX (10-12), Kuga (08-12), Mondeo (07-12),
          S-MAX (06-12), Tourneo Connect (02-12), Transit Connect (02-12).
• Engine Code:---
  1.25/1.4 16v Petrol Engine (Belt): RTJA, RTJB, SNJA, SNJB, SPJA, STJA, STJB.
  1.6 Ti-VCT Petrol Engine (Belt): HXDA, HXJA, HXJB, IQDA, IQDB, PNBA, PNDA,
                      RHBA, SIDA.
  1.8 TDi/TDDi/TDCi Diesel Engine (Belt): RTN, RTQ, RTP, BHDB, BHPA, C9DA,
                      C9DB, C9DC, F9DA, F9DB, FFBA, FFDA, FFWA, HCPA, HCPB,
                      P7PA, HCPB, P7PA, P9PA, QYBA, QYWA, R2PA, R3PA, RWPA,
                      KKDA. 2.0/2.2 TDCi
  Diesel Engine (Belt): AZBA, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF,
                      G6DG, IXDA, KLBA, KNBA, LPBA, Q4BA, QXBA, QXBB, QXWA,
                      QXWB, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA,
                      UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA.

• A.) Camshaft Alignment Plate. OEM: 303-376B/21-162B/303-376.
• B.) Tensioner Locking Pin. OEM: T40011.
• C.) Crankshaft Timing Pin. OEM: 21-104 / 303-193.
• D.) Flywheel Locking Tool-Base Plate and Adaptor–(29 mm).
        OEM: 303-393A (21-168).
• E.) Adaptor–(42 mm). OEM: 303-393-02 / F.) Adaptor–(11 mm). OEM: 303-393-01.
• G.) Camshaft and Fuel Pump Sprocket Locking Pin 6 mm (3pcs). OEM: 0132AB.
• H.) Flywheel Locking Pin. OEM: 21-251 / I.)  Flywheel Locking Pin. OEM: 21-234.
• J.) Camshaft / Fuel Pump Alignment Pin (x2). OEM: 21-260 / 303-732.
• K.) Crankshaft Timing Pin. OEM: 21-210 / 303-507.
• L.) Crankshaft Timing Pin.  OEM: 303-620 / 21-163 /| 303-574.
• M.) Crankshaft Timing Tool. OEM: 303-748 / 21-259.
• N.) Camshaft/Crankshaft Timing Pin. OEM: 21-263 / 303-735.
• O.) Flywheel Locking Pin. OEM: 21-262 / 303-734.
• P.) Camshaft Locking Pin.
• Q.) Timing Pin.

• Crankshaft Timing Pin:---
  Ford Courier/Kombi 1.8D, Escort Van 1.8D/TD, Fiesta 1.8D Turbo, Fiesta Van 1.8D,
           Focus 1.8D Turbo, Mondeo 1.8TD, Orion 1.8D/TD, P100 1.8 TD, Sierra 1.8 TD
• Ford Cougar 2.0 16v: Engine: Zetec, 1999.
           Escort Orion 1.6, 1.8 16v: Engine: RKC, L1K, L1H, 1991-1998.
           Focus 1.4, 1.6, 1.8, 2.0 16v. 1998-2000.
           Focus 1.8 TDi: Engine: Zetec. 2002-2003, 1998-2000.
           Focus 1.4, 1.6: Engine: Zetec. 2002-2003.
           Focus 1.6, 1.6 16v Ti-VCT, Engine: FXDA/C, FXDB/D, FYDA/C, FYDB/D,
                                                          DYDH. 1998-2005.
           RS1800 1.7: Engine: RDB, RQB, RQC. 1991-1998.
           Focus C - Max 1.6, 1.8, 2.0 16v: Engine: HWDA, HWDB. 2003-2007.
           Mondeo 1.8 16v, Engine: L1F, L1J, RKA, RKB, NGA. 1993-2000.
           Fiesta Puma 1.25, 1.4: Engine: DHA, DHB, DHC, DHD, FHA, FHE. 1995-1997.
           Puma 1.25: Engine: MHA. 1997-2000.
           Fiesta Fusion 1.25, 1.4, 1.6: Engine: FUJA, FUJB, FXJA, FXJB, FYJA, FYJB,
                                                            F8JA, F8JB, M7JA, M7JB. 2002-2007.
           Fiesta XR2i 1.25, 1.4, 1.6: Engine: DHA, DHB, DHC, DHE, DHF, DHG, HA,
                                                         FHE, L1T, L1V. 1997-2002.
  Mazda 121 1.7: Engine: DHA. 1995-1998.

• N.) Engine Code: F6JA F6JB F6JC G8DA B8DB HHDA. Vehicle Model: Fiesta,
        Fusion 1.4 TDCi with the cam belt 2002-2006 - Focus 1.6 TDCi 2004-2006-
        Focus C-MAX 1.6 TDCi with the cam chain 2003-2006.
• J.) Engine: F6JA F6JB F6JC G8DA B8DB HHDA. Vehicle Model: Fiesta,
        Fusion 1.4 TDCi with the cam belt 2002-2006 - Focus 1.6 TDCi 2004-2006-Focus
        C-MAX 1.6 TDCi with the cam chain 2003-2006.
• O.) Engine: F6JA F6JB F6JC G8DA B8DB HHDA.
         Vehicle Model: Fiesta, Fusion 1.4 TDCi with the cam belt 2002-2006 -
         Focus 1.6 TDCi 2004-2006-Focus C-MAX 1.6 TDCi with the cam chain 2003-2006.
