• The essential setting and locking tool is for the timing belt replacement on a huge
  range of VAG diesel and petrol engine and also suitable for the chain in head service
  and tensioner application on 1.8/1.8T engine, including camshaft setting plates,
  injection pump locking pins, and tensioner tools.

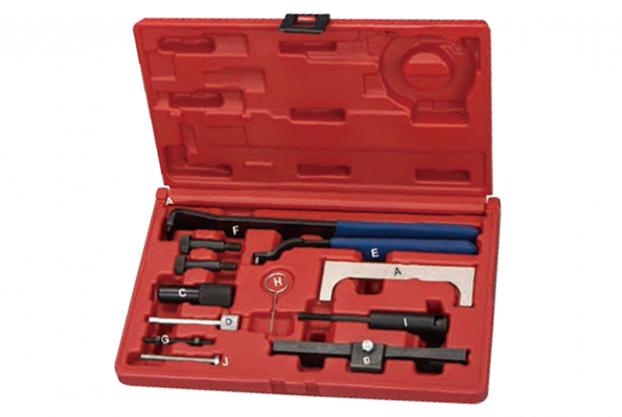

• A.) Camshaft Setting Plate.
        OEM-VAG: U40021/2065A/U20006/MP 1-300. OEM-Ford: 21-105.
• B.) Camshaft Setting Plate. OEM-VAG: T20038/MP-1-312/3418/T10098.
• C.) Injection Pump Locking Pin. OEM-VAG: 2064/U20003. OEM-Ford: 23-047.
• D.) Injection Pump Locking Pin. OEM-VAG: 3359.
• E.) Tensioner Adjuster. OEM-VAG: 3387.
• F.) Tensioner Adjuster.  OEM-VAG: T10020.
• G.) Tensioner Retainer Bolt. OEM-VAG: T10092.
• H.) Tensioner Locking Pin. OEM-VAG: T40011.
• I.)  Chain Tensioner Retainer.
       OEM-VAG: T20044/3366.
• J.) Fan Retaining Bolt.

• Application (Model):---
  Audi: 80 (91-96), A3 (96-12), A4 (94-01), A6 (94-05), S3 (99-03), TT (98-06).
  Skoda: Fabia (99-07), Felicia (95-01), Octavia/Octavia Tour (96-10), Octavia II (04-12),
              Superb (02-08).
  Seat: Alhambra (96-100), Altea/Altea XL (04-12), Arosa (98-05), Cordoba (93-06),
           Exeo (09-10), Ibiza (93-06), Inca (95-04), Leon (99-12), Toledo (94-09).
  Volkswagen: Beetle (98-11), Bora (97-06), Caddy/Pick-Up (95-12), Fox (05-07),
                       Golf (93-12), Golf Plus (05-09), Jetta (05-11), Lupo (95-08), Passat (96-10),
                       Polo (95-06), Sharan (95-10), Touran (03-10), Transporter (90-12),
                       Vento (94-98).
  Ford: Galaxy (95-00).

• Engine Code (Diesel):---
  1.7D: AHG.
  1.7D SDi: AHB, AKU, AKW.
  1.9 D: 1X, 1Y, ABL, AEF.
  1.9D Turbo: AAZ.
  1.9 SDi: AEY, AGD, AGP, AQM, ASX, ASY, AYQ.
  1.9 TDi: 1Z, AFF, AFN, AGR, AHF, AHH, AHU, ALE, ALH, ASV, AVG.

• Engine Code (Petrol):---
  1.6: 1F, ADP, AEH, AEK, AFT, AHL, AKL, AKS, ALZ, ANA, APF, ARM, AUR, AVU, AYD,
         BFQ, BFS, BGU, BSE, BSF, CCSA, CHGA, CMXA. 1.8: ABS, ADL, ADZ.
  2.0: 2E, AAC, AAE, ABF, ABK, ACE, ADY, AEG, AGG, AKT, APK, AQY, ATM, ATU,
         AWF, AWG, AXA, AZG, AZH, AZJ, AZL, AZM, BBX, BEH, BSX

• Engine Code (Petrol – Chain in Head):---
  1.8: AGN, APG, ADR, AFY, APT, ARG, AVV, AJP.
  1.8T: AEB, AGU, AJH, AJL, AJQ, AMK, AMU, ANB, APP, APU, APX, APY, AQA, AQX,
            ARX, ARY, ARZ, AUM, AUQ, AVC, AWC, AWU, AYP, BAM, BFV, BVP, BVR.
