•Application:---

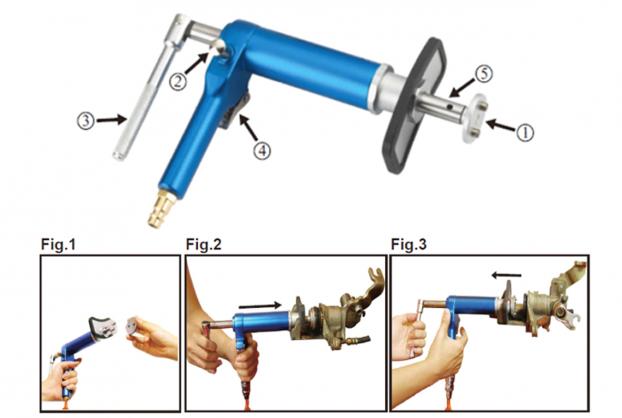

 A.) Choose an adapter suitable for working on the brake caliper piston. Fit it onto magnetic adapter (1). Connect the tool to the compressed air line, making sure that it does not exceed 8 bar pressure (Fig. 1).

 B.) Press the release button (2) and operate lever (3) to move the push spindle (5) forward or backward and fit the tool into the caliper.

 C.) Press button (4) and rotating lever (3) to rotate the brake caliper piston (Fig. 2).

 D.) After pushing the piston backward, press button (2) and pull lever (3) to move the push spindle (5) backward, releasing the tool from the caliper (Fig. 3).

•Designed for pushing back and wind back piston.

•Provides pneumatic body to increase work efficiency.

•Provides right / left helix bolt.

•Universal application.

•No direction limitation, rotating lever work both left/right.
