•921-9690 (Size): M12 x P1.5.

•921-9691 (Size): M14 x P1.5.

•Material: CR-Mo with S45C steel.

•Finish: PH Black.

•On some vehicles in the Volkswagen, Audi Group the sub-frame needs to be removed to service teh suspension bushes, when removing the clutch, changing the engine, servicing the wheels, steering, stabilizer bar or control arms.

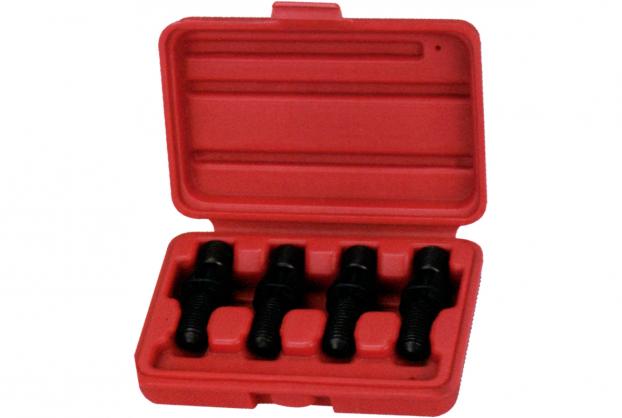

•These pins are screwed into the sub-frame and used to guide it back into place once the task is complete.

•Care should be taken to bolt back diagonally and to the manufacturer’s recommended torque.



Two sizes are available:---

•The first an M12 can be fitted to Volkswagen Scirocco (09), EOS (06), Golf (09), Golf Plus (05), Jetta (4-06), Polo (02), Fox (06), Passat (06), Passat CL (09), Audi A3 (04), TT (07) and A4 (01) - OEM T10096 (Sub-frame Locating Pins - Volkswagen and Audi Group.

•The second size an M14 is primarily used for the new Volkswagen Crafter - OEM T10227.

•For VW T5, Touareg 2.5L 5-cylinder TDI engines.
