Motorcycle Repair Tools

251-4581

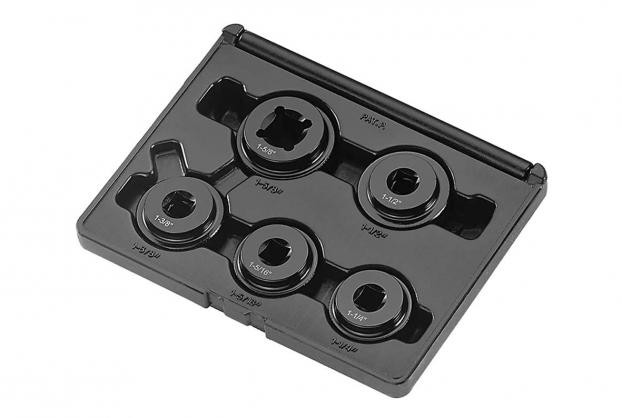

Flywheel Nut Socket Tool Set
← →
Qty :
Add to Inquiry List
• Low profile, all sockets give 100% nut coverage.
• Sockets end are machined flat to eliminate rounding off the flywheel nut.
• Made from chrome-moly steel and heat-treated for strength.
• Set provides five sockets ：
  01.) 1-5/16＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D big twin 1954-early 1981.
  02.) 1-1/2＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D big twin late 1983-99 single cam only
  03.) 1-1/4＂x 1/2＂drive: Use to install and remove pinion shaft nut
         on all H-D big twin late 1981-89
  04.) 1-5/8＂x 3/4＂drive: Use to install and remove sprocket shaft nut
         on all H-D big twin 1972-99, single cam only
  05.) 1-3/8＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D Sportster 1981-98 and Buell 1987-99
• Caution:---
  Refer to your H-D service manual for specifications and wear safety glasses.
• Low profile, all sockets give 100% nut coverage.
• Sockets end are machined flat to eliminate rounding off the flywheel nut.
• Made from chrome-moly steel and heat-treated for strength.
• Set provides five sockets ：
  01.) 1-5/16＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D big twin 1954-early 1981.
  02.) 1-1/2＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D big twin late 1983-99 single cam only
  03.) 1-1/4＂x 1/2＂drive: Use to install and remove pinion shaft nut
         on all H-D big twin late 1981-89
  04.) 1-5/8＂x 3/4＂drive: Use to install and remove sprocket shaft nut
         on all H-D big twin 1972-99, single cam only
  05.) 1-3/8＂x 1/2＂drive: Use to install and remove crank pin nut
         on all H-D Sportster 1981-98 and Buell 1987-99
• Caution:---
  Refer to your H-D service manual for specifications and wear safety glasses.
