Motorcycle Repair Tools
251-4355

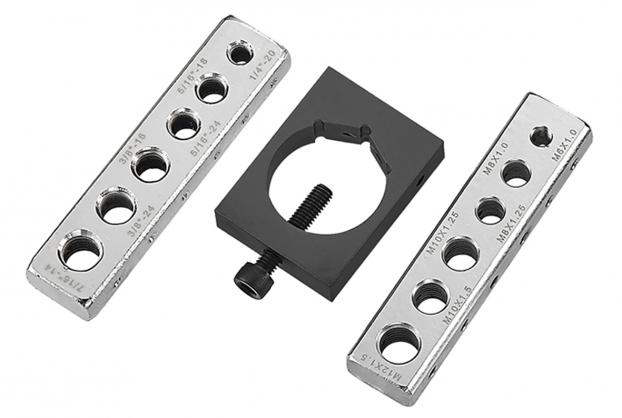

Safety Wire Nut And Imperial/Metric Bolt Drill Jig Kit
• Kit contains one nut drill jig, one imperial and one metric bolt drill jig.
• Nut Drill Jig allows the safety wire holes to be drilled through the head
of bolts or through nuts, across the diagonal easily.
• It will accept up to a 3.5mm diameter.
• Imperial Bolt Drill Jig provides 6 drill holes for imperial sizes:
1/4"- 20, 5/16"- 24, 3/8"- 24, 7/16"- 14, 5/16"- 18, 3/8"- 16 bolts.
• Metric Bolt Drill Jig provides 6 drill holes for metric sizes:
6 x 1.0, 8 x 1.0, 8 x 1.25, 10 x 1.25, 10 x 1.5, 12 x 1.5 bolts.
• Kit contains one nut drill jig, one imperial and one metric bolt drill jig.
• Nut Drill Jig allows the safety wire holes to be drilled through the head
of bolts or through nuts, across the diagonal easily.
• It will accept up to a 3.5mm diameter.
• Imperial Bolt Drill Jig provides 6 drill holes for imperial sizes:
1/4"- 20, 5/16"- 24, 3/8"- 24, 7/16"- 14, 5/16"- 18, 3/8"- 16 bolts.
• Metric Bolt Drill Jig provides 6 drill holes for metric sizes:
6 x 1.0, 8 x 1.0, 8 x 1.25, 10 x 1.25, 10 x 1.5, 12 x 1.5 bolts.
