Grease & Lubricants Equipment
120-0524

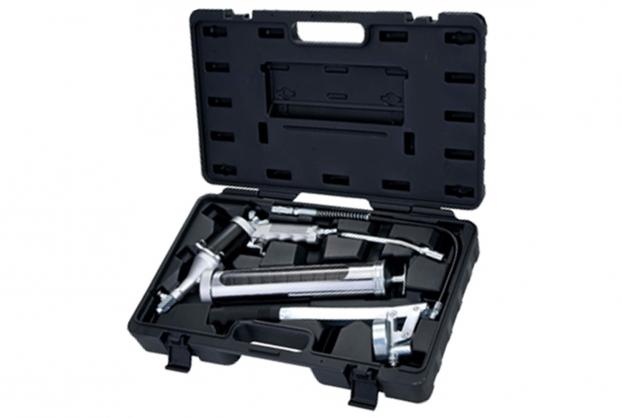

4pcs Clear Air Grease Gun Combination Kit
•With visible tube, 400 c.c. capacity.
•360 degree angle-free rotating.
•With continuously flow.
•With air-pocket released valve.
•Manual operation gun head With build-in air-pocket released valve.
•12” nylon hose with coupler.
•Metallic bend spout.
•Removable end cap with positive lock stopper.
•Textured TPR Non-slip Grip.
•Transparent Air Grease Gun:---
•A. Input pressure range: 60 psi ~ 150 psi compressed air supplied. Output pressure range: 2400 psi ~6000 psi
•B. Input pressure range: 90 psi Recommended Air Source. Output pressure range: 3600 psi
•C. Delivers: 3.5 c.c. / per sec.
•D. 3-way loading: Cartridge / Dispenser / Bulk
•Manual operation gun head assembly with build-in air-pocket released and transparent tube.
•a. Working Pressure up to: 4,500 psi
•b. Developing working pressure up to: 7,000 psi
•c. Burst pressure up to: 10,000 psi
•d. Delivers: 1 oz./ 40 stroke
•e. 3-way loading: Cartridge / Dispenser / Bulk
•f. Longer handle for increase leverage.
•How to use the air grease gun’s smart air-pocket released valve:---
•Step 1. Stop pressing trigger.
•Step 2. Press the valve 3 to 5 times to release air
•Step 3. Press the trigger and ready to use
•Step 4. If the grease not comes out at the once, just repeat the above steps until the grease comes out.
•How to use the manual grease gun’s air-pocket released valve:---
•Step 1. Pull back the gun handle
•Step 2. Press the valve 3 to 5 times to release air
•Step 3. Ready to pumping
•Step 4. If the grease not comes out at the one, just repeat the above steps until the grease comes out.
•PS.: The grease will come out a little bit with normal phenomena, when the air-pocket release form the inside of tube and accessory.
•With visible tube, 400 c.c. capacity.
•360 degree angle-free rotating.
•With continuously flow.
•With air-pocket released valve.
•Manual operation gun head With build-in air-pocket released valve.
•12” nylon hose with coupler.
•Metallic bend spout.
•Removable end cap with positive lock stopper.
•Textured TPR Non-slip Grip.
•Transparent Air Grease Gun:---
•A. Input pressure range: 60 psi ~ 150 psi compressed air supplied. Output pressure range: 2400 psi ~6000 psi
•B. Input pressure range: 90 psi Recommended Air Source. Output pressure range: 3600 psi
•C. Delivers: 3.5 c.c. / per sec.
•D. 3-way loading: Cartridge / Dispenser / Bulk
•Manual operation gun head assembly with build-in air-pocket released and transparent tube.
•a. Working Pressure up to: 4,500 psi
•b. Developing working pressure up to: 7,000 psi
•c. Burst pressure up to: 10,000 psi
•d. Delivers: 1 oz./ 40 stroke
•e. 3-way loading: Cartridge / Dispenser / Bulk
•f. Longer handle for increase leverage.
•How to use the air grease gun’s smart air-pocket released valve:---
•Step 1. Stop pressing trigger.
•Step 2. Press the valve 3 to 5 times to release air
•Step 3. Press the trigger and ready to use
•Step 4. If the grease not comes out at the once, just repeat the above steps until the grease comes out.
•How to use the manual grease gun’s air-pocket released valve:---
•Step 1. Pull back the gun handle
•Step 2. Press the valve 3 to 5 times to release air
•Step 3. Ready to pumping
•Step 4. If the grease not comes out at the one, just repeat the above steps until the grease comes out.
•PS.: The grease will come out a little bit with normal phenomena, when the air-pocket release form the inside of tube and accessory.
