•Capacity: 20L.

•Air Input Pressure: 3 ~ 7 bar / 40 ~ 100 psi.

•Pressure Ratio: 50 : 1.

•Grease Output Pressure: 150 ~ 350 bar / 2000 ~ 5000 psi.

•Deliver Rate: 26g / cycle.

•N.W.: 90.0 kgs. G.W.: 124.0 kgs. CUFT: 16.2'.



•The Ouside Dimension:---

•Length: 800 mm.

•Width: 900 mm.

•Mini Height: 1120 mm.

•Max Height: 1620 mm.

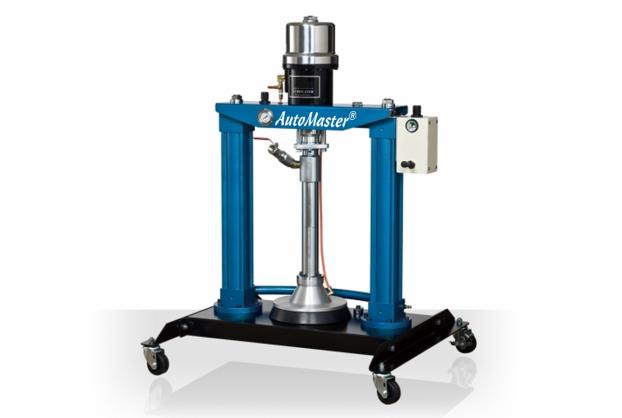

•(1) Dual pneumatic cylinder structure design brings higher stability during operation, more average actuation force and smoother fluid output.

•(2) Special design of follower plate which enables the follower plate & container can be combined tighter. This can be used on any container with taper and high viscosity fluid and can further reduce the residual materials inside the container or at the bottom of container significantly.

•(3) The design of the non-rubber seal can extract special fluids such as grease or ink.

•(4) The pneumatic cylinder auxiliary press is suitable for high viscosity grease or the grease that hard to extract by normal pump.

•(5) The large output flow design is suitable for different production lines or demand for large flow.

•(6) Suitable for original 5 gallon grease drum from every country.

•(7) The pump is made of aluminum alloy.



•Grease usage: Available for normal 00#~3# grease.



•Operation:---

  Special design is for container with taper.(drum inner dimension Ø265 ~φØ300).

  Reciprocating pump with large flow enables smoother oil supply.

  Synchronous pressurization of dual pneumatic cylinder which enables smoother extraction of high viscosity fluid.
