Grease & Lubricants Equipment
120-7537

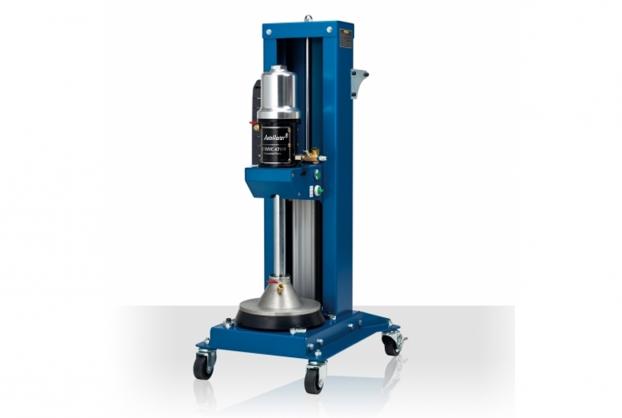

High Viscosity Fluid Pump / Grease Pump, Capacity: 20L
•Capacity: 20L.
•Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
•Pressure Ratio: 45 : 1.
•Grease Output Pressure: 180 ~ 405 bar / 2700 ~ 5850 psi.
•Deliver Rate: 9g / cycle.
•Hose Length: 10 ft.
•N.W.: 64.0 kgs. G.W.: 7.85 kgs. CUFT: 12’.
•The Ouside Dimension:---
•Length: 460 mm.
•Width: 420 mm.
•Mini Height: 1140 mm.
•Max Height: 1400 mm.
•Feature:---
•(1) Pump moves and oil suction are two separation system, it won’t contaminating grease.
•(2) The special design of the follow plate is for the container with taper.
(drum inner dimension Ø265 ~φØ300).
•(3) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces,
construction, trains...etc.
•(4) Adopting the pressure design of additional air cylinder makes the stiff grease easier to be sucked.
•(5) Suitable for original 5 gallon grease drum from every country.
•(6) The pump is made of aluminum alloy by forging.
•Grease usage: General 00#~3# grease all can be infused into smoothly.
•Operation: The special design is for the container with taper.(drum inner dimension Ø265 ~φØ300).
•Capacity: 20L.
•Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
•Pressure Ratio: 45 : 1.
•Grease Output Pressure: 180 ~ 405 bar / 2700 ~ 5850 psi.
•Deliver Rate: 9g / cycle.
•Hose Length: 10 ft.
•N.W.: 64.0 kgs. G.W.: 7.85 kgs. CUFT: 12’.
•The Ouside Dimension:---
•Length: 460 mm.
•Width: 420 mm.
•Mini Height: 1140 mm.
•Max Height: 1400 mm.
•Feature:---
•(1) Pump moves and oil suction are two separation system, it won’t contaminating grease.
•(2) The special design of the follow plate is for the container with taper.
(drum inner dimension Ø265 ~φØ300).
•(3) Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces,
construction, trains...etc.
•(4) Adopting the pressure design of additional air cylinder makes the stiff grease easier to be sucked.
•(5) Suitable for original 5 gallon grease drum from every country.
•(6) The pump is made of aluminum alloy by forging.
•Grease usage: General 00#~3# grease all can be infused into smoothly.
•Operation: The special design is for the container with taper.(drum inner dimension Ø265 ~φØ300).
AUTO TOOLS CO., LTD.
