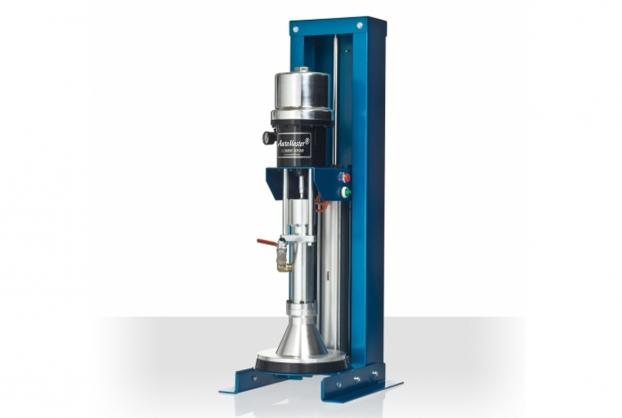

•Capacity: 20L.

•Air Input Pressure: 3 ~ 7 bar / 40 ~ 100 psi.

•Pressure Ratio: 32 : 1.

•Grease Output Pressure: 96 ~ 224 bar / 1280 ~ 3200 psi.

•Deliver Rate: 34g / cycle.

•N.W.: 76.0 kgs. G.W.: 91.0 kgs. CUFT: 12’.



•The Ouside Dimension:---

•Length: 460  mm.

•Width: 420 mm.

•Mini Height: 1140 mm.

•Max Height: 1400 mm.



•Feature:---

•(1) more average actuation force and smoother fluid output.

•(2) Special design of follower plate which enables the follower plate and container can be combined tighter. This can be used on any container with taper and high viscosity fluid and can further reduce the residual materials inside the container or at the bottom of container significantly.

•(3) The design of the non-rubber seal can extract special fluids such as grease or ink.

•(4) The pneumatic cylinder auxiliary press is suitable for high viscosity grease or the grease that hard to extract by normal pump.

•(5) The large output flow design is suitable for different production lines or demand for large flow.

•(6) Suitable for original 5 gallon grease drum from every country.

•(7) The pump is made of aluminum alloy.



•Grease usage: General 00#~3# grease all can be infused into smoothly..

•Operation: The special design is for the container with taper.(drum inner dimension Ø265 ~φØ300).
