PRODUCTS

Grease & Lubricants Equipment

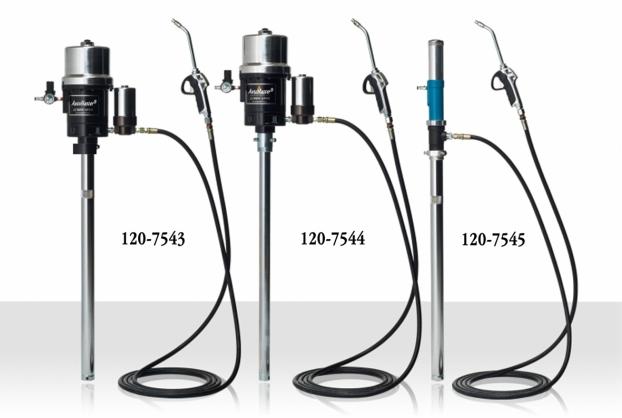

120-7543 / 120-7544 / 120-7545

Air Operated Oil Pump, Capacity: 200L
← →
Qty :
Add to Inquiry List
•120-7543: The pump is made of aluminum alloy by forging.
  Capacity: 200L.
  Deliver Rate: 140c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 10 : 1 suitable to pump 0#~120# engine oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 40 ~ 90 bar / 600 ~ 1300 psi.
  N.W.: 19.5 kgs.
  G.W.: 21.0 kgs.
  CUFT: 2.4'.

•120-7544: The pump is made of aluminum alloy by forging.
  Capacity: 200L.
  Deliver Rate: 80c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 32 : 1 suitable to pump 140#~200# gear oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 28 ~ 288 bar / 1920 ~ 4160 psi.
  N.W.: 19.5 kgs.
  G.W.: 21.0 kgs.
  CUFT: 2.4'.

•120-7545: The pump is made of aluminum alloy.
  Capacity: 200L.
  Deliver Rate: 150c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 1 : 1suitable to pump 0#~120# gear oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 4 ~ 9 bar / 60 ~ 130 psi.  N.W.: 9.2 kgs.
  G.W.: 11.2 kgs.
  CUFT: 1.0'.

•Oil Usage:---
  If you want to know how much added oil volume is, we suggest you buy flow meter extra. (Model: M101, M201. There are two types for your option.)
  If you want to pump the oil to long distance, we’d suggest hose reel be purchased extra. (Model: RE020).

•Pump moves and oil suction are two separation system, it won’t contaminating grease.
•Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains...etc.
•Use pneumatic pump, no need for electric power, can be used in places with flammable substances, such as gas station, car maintenance plant...etc.




•120-7543: The pump is made of aluminum alloy by forging.
  Capacity: 200L.
  Deliver Rate: 140c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 10 : 1 suitable to pump 0#~120# engine oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 40 ~ 90 bar / 600 ~ 1300 psi.
  N.W.: 19.5 kgs.
  G.W.: 21.0 kgs.
  CUFT: 2.4'.

•120-7544: The pump is made of aluminum alloy by forging.
  Capacity: 200L.
  Deliver Rate: 80c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 32 : 1 suitable to pump 140#~200# gear oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 28 ~ 288 bar / 1920 ~ 4160 psi.
  N.W.: 19.5 kgs.
  G.W.: 21.0 kgs.
  CUFT: 2.4'.

•120-7545: The pump is made of aluminum alloy.
  Capacity: 200L.
  Deliver Rate: 150c.c / cycle.
  Hose Length: 20 ft.
  Pressure Ratio: 1 : 1suitable to pump 0#~120# gear oil or general non-corrosive solvent.
  Air Input Pressure: 4 ~ 9 bar / 60 ~ 130 psi.
  Oil Output Pressure: 4 ~ 9 bar / 60 ~ 130 psi.  N.W.: 9.2 kgs.
  G.W.: 11.2 kgs.
  CUFT: 1.0'.

•Oil Usage:---
  If you want to know how much added oil volume is, we suggest you buy flow meter extra. (Model: M101, M201. There are two types for your option.)
  If you want to pump the oil to long distance, we’d suggest hose reel be purchased extra. (Model: RE020).

•Pump moves and oil suction are two separation system, it won’t contaminating grease.
•Typically used in workshops, service stations, fleet maintenance, mining, agriculture, armed forces, construction, trains...etc.
•Use pneumatic pump, no need for electric power, can be used in places with flammable substances, such as gas station, car maintenance plant...etc.
