120-7582

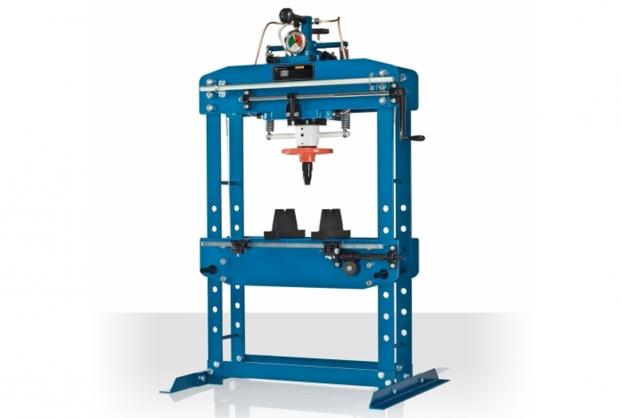

35 Ton Manual Hydraulic Press
•Capacity: 35 TON.
•Cylinder Bore: ¢125 mm.
•Pressure: 300kg / cm2.
•Cylinder Stroke: 115 mm.
•Packing: Wooden Crate.
•N.W.: 310.0 kgs.
•G.W.: 365.0 kgs.
•CUFT: 37’

•Can be operated manually. No electricity is needed.
•Work table can freely adjust working distance (up-down) as per the size of work piece.
•Professional manual hydraulic press: Unnecessary & efficient instrument for repairing and maintaining machinery, mold and automobile.
•Suitable to be applied for such functions as bending, deforming, rectifying, modeling or for bearing and gear shaft arbor getting pressed in or enforcing out.
•Hydraulic main body can adjust freely work distance (up/down/left/right) as per size of work piece.

•Equipped with dual-speed high/low pressure: The operation is quick & convenient. Also, pressure safety valve is also equipped. When pressure exceeds 40 ton and above, it will release pressure automatically.
•Operation: Arbor can be shrank & extended. The head of Hydraulic Press can move left or right. The height of working table can be adjusted.

•Capacity: 35 TON.
•Cylinder Bore: ¢125 mm.
•Pressure: 300kg / cm2.
•Cylinder Stroke: 115 mm.
•Packing: Wooden Crate.
•N.W.: 310.0 kgs.
•G.W.: 365.0 kgs.
•CUFT: 37’

•Can be operated manually. No electricity is needed.
•Work table can freely adjust working distance (up-down) as per the size of work piece.
•Professional manual hydraulic press: Unnecessary & efficient instrument for repairing and maintaining machinery, mold and automobile.
•Suitable to be applied for such functions as bending, deforming, rectifying, modeling or for bearing and gear shaft arbor getting pressed in or enforcing out.
•Hydraulic main body can adjust freely work distance (up/down/left/right) as per size of work piece.

•Equipped with dual-speed high/low pressure: The operation is quick & convenient. Also, pressure safety valve is also equipped. When pressure exceeds 40 ton and above, it will release pressure automatically.
•Operation: Arbor can be shrank & extended. The head of Hydraulic Press can move left or right. The height of working table can be adjusted.
