Mercedes-Benz & BMW Tools

903-9012

BMW (S54) Engine Timing Tool Set
← →
Qty :
Add to Inquiry List

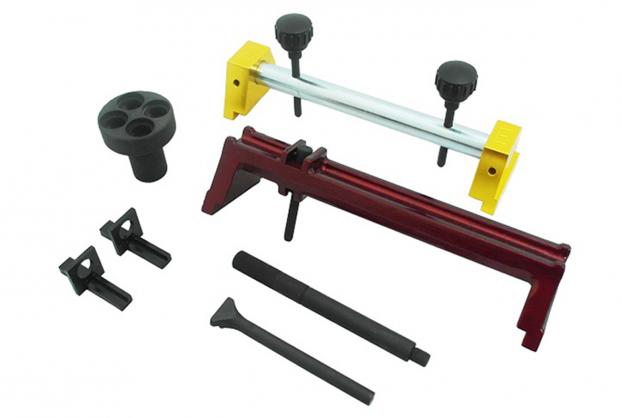

•For checking and setting camshaft timing while installing VANOS adjustment unit on S54 engines.
•Applications: M3 cabriolet (00-06), sports coupe (99-06), CSL sports coupe (03-04).
•OEM Ref: 119140, 119130, 119170, 117340, 115100, 117160, 112300.

•1.) Setting Gauge (gauge x 1, pins x 2): OEM Ref: 119130, Setting gauge with correction angle for timing diagram.
•2.) Test Gauge: OEM Ref: 119140, test gauge for timing diagram.
•3.) Adapter: OEM Ref: 115100, For cranking the engine at the crankshaft when adjusting the timing.
•4.) Spacer (2pcs): OEM Ref: 119170, For maintaining a prescribed distance installing the VANOS unit.
•5.) Mandrel: OEM Ref: 112300, for locking the crankshaft in TDC firing position when adjusting the timing.
•6.) Hook Wrench: OEM Ref: 117160, for adjusting the spline hub on the camshaft when feeding in the helical-cut splines of the VANOS unit.
•For checking and setting camshaft timing while installing VANOS adjustment unit on S54 engines.
•Applications: M3 cabriolet (00-06), sports coupe (99-06), CSL sports coupe (03-04).
•OEM Ref: 119140, 119130, 119170, 117340, 115100, 117160, 112300.

•1.) Setting Gauge (gauge x 1, pins x 2): OEM Ref: 119130, Setting gauge with correction angle for timing diagram.
•2.) Test Gauge: OEM Ref: 119140, test gauge for timing diagram.
•3.) Adapter: OEM Ref: 115100, For cranking the engine at the crankshaft when adjusting the timing.
•4.) Spacer (2pcs): OEM Ref: 119170, For maintaining a prescribed distance installing the VANOS unit.
•5.) Mandrel: OEM Ref: 112300, for locking the crankshaft in TDC firing position when adjusting the timing.
•6.) Hook Wrench: OEM Ref: 117160, for adjusting the spline hub on the camshaft when feeding in the helical-cut splines of the VANOS unit.
