Mercedes-Benz & BMW Tools

903-9022

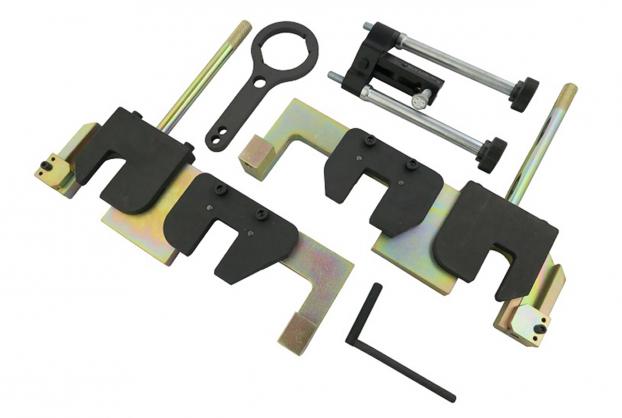

BMW (S63 / N63) Camshaft Alignment Tool
← →
Qty :
Add to Inquiry List
•Special designed to locate the camshaft in TDC position.
•Checking and adjusting the timing chain tensioner.
•Applications:---
  S63 engine: 5’, F10, M5 (2010-2014).
  S63 engine: 6’, F06 / F12 / F13, M6 (2011-2014).
  N63 engine: 6’, F06, 650i / 650ix (2011-2014).
  N63 engine: X’, F15, X5 50iX / X5 xdriv (2012-2014).

•OEM Ref: 2249117, 2249140, 2249144, 2249159, 2249162, 118570, 119190.
•OEM No. 2249117, Gauge: For securing camshaft at TDC.
•OEM No. 2249137, Gauge: intake, bank1.
•OEM No. 2249140, Gauge: exhaust camshaft, bank1.
•OEM No. 2249144, Gauge: intake, bank 2.
•OEM No. 2249159, Gauge: exhaust camshaft, bank2.
•OEM No. 2249162, Device: For preloading timing chain when adjusting timing.
•OEM No. 118570, Holder Wrench: For holding the engine at TDC (in conjunction with alignment pin).
•OEM No. 119190, Alignment Pin: For securing flywheel in TDC setting.
•Special designed to locate the camshaft in TDC position.
•Checking and adjusting the timing chain tensioner.
•Applications:---
  S63 engine: 5’, F10, M5 (2010-2014).
  S63 engine: 6’, F06 / F12 / F13, M6 (2011-2014).
  N63 engine: 6’, F06, 650i / 650ix (2011-2014).
  N63 engine: X’, F15, X5 50iX / X5 xdriv (2012-2014).

•OEM Ref: 2249117, 2249140, 2249144, 2249159, 2249162, 118570, 119190.
•OEM No. 2249117, Gauge: For securing camshaft at TDC.
•OEM No. 2249137, Gauge: intake, bank1.
•OEM No. 2249140, Gauge: exhaust camshaft, bank1.
•OEM No. 2249144, Gauge: intake, bank 2.
•OEM No. 2249159, Gauge: exhaust camshaft, bank2.
•OEM No. 2249162, Device: For preloading timing chain when adjusting timing.
•OEM No. 118570, Holder Wrench: For holding the engine at TDC (in conjunction with alignment pin).
•OEM No. 119190, Alignment Pin: For securing flywheel in TDC setting.
