• For anti-spill coolant refilling and air bleeding.
• Includes 4 extension pipes for confined space or tricky angles.
• Transparent lower chamber displays the amount of air bubbles remaining in the radiator.
• Includes adapters with nylon covers to reduce heat transfer resulted from air bleeding.
• Special design of connector to adapters provides anti-spill feature.

• Funnel capacity: 1,600 ml. Large capacity suitable for works on trucks and heavy duty vehicles.
• Rubber Ring Sizes: 35, 39.5 & 44mm.
• Rubber Ring Expansion: About 4mm when connected to universal adapter and rotated.
• Funnel Connector Size: 24.5mm.
• Funnel Capacity: 1,600 ml / 54 oz.
• Funnel Material: PP.
• Lower Chamber Material: PC.
• Connector Caps Material: Steel with nylon surface cover.
• Rubber Rings Material: Rubber.
• Lower chamber and rubber rings reach SVHC standards.
• Lower chamber approved by SGS Taiwan.

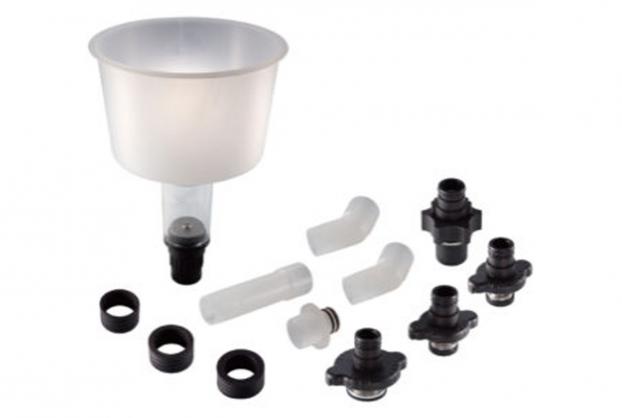

• 1.) Coolant Funnel (1.6L, Translucent). Weight: 233g.
• 2.) Pipe Connector - Male To Funnel. Weight: 13g.
• 3.) Pipe Connector - Straight 124mm. Weight: 32g.
• 4.) Pipe Connector - Angled 135° (2pcs). Weight: 21g.
• 5.) Universal Adapter With Nylon Surface. Weight: 145g.
• 6.) OD35 x ID30 Rubber Ring. Weight: 5.6g.
• 7.) OD39.5 x ID30 Rubber Ring. Weight: 12.6g.
• 8.) OD44 x ID30 Rubber Ring. Weight: 19.8g.
• 9.) Cap No. 3 Connector With Nylon Surface. Weight: 89g.
• 10.) Cap No. 4 Connector With Nylon Surface. Weight: 58g.
• 11.) Cap No. 5 Connector With Nylon Surface. Weight: 59g.
• 12.) Replacement O-Ring 20.4 x 2mm (4pcs). Weight: 0.6g
