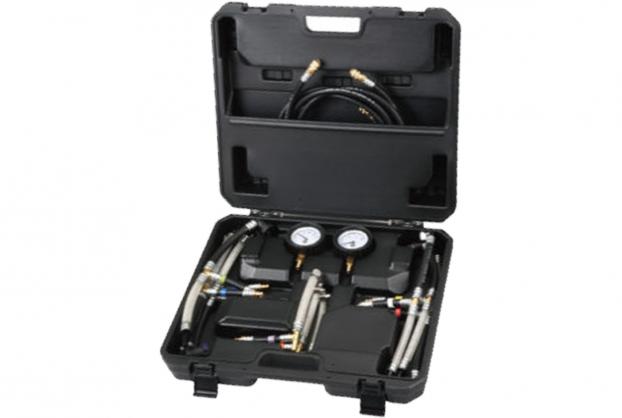

• This diagnostic set is to inspect low pressure or return fuel side of diesel engines.
• Two manometers with different scales (-1 ~ 5 bar and -1 ~ 15 bar) offer
  more accurate test results.
• Ten fuel line adapters cover a wide range of diesel engines and car makes.
• Translucent tube on adapters help observe impurities and bubbles in the fuel.
• 2 meter long hoses help connections in confined areas in engine compartment.

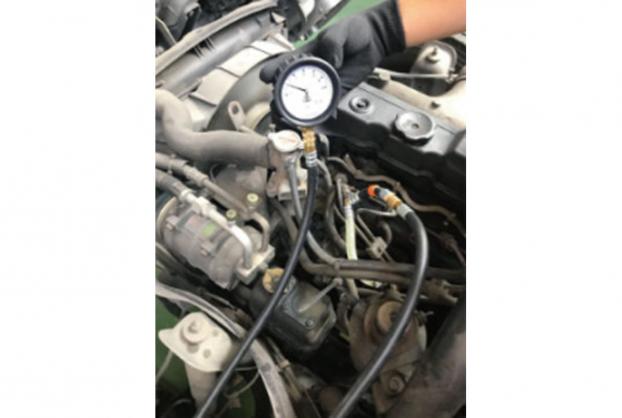

• A.) Disconnect fuel line from fuel tank to fuel filter. Wrap a workshop rug
        around the disconnected parts in case of any fuel leaks or spills.
• B.) Choose a suitable T-Connector and connect the T-Connector between
        fuel tank and fuel filter.
• C.) Choose a suitable gauge and connect to T-Connector.
• D.) Start the engine and read the gauge.
        Compare the reading to auto manufacture’s specification.

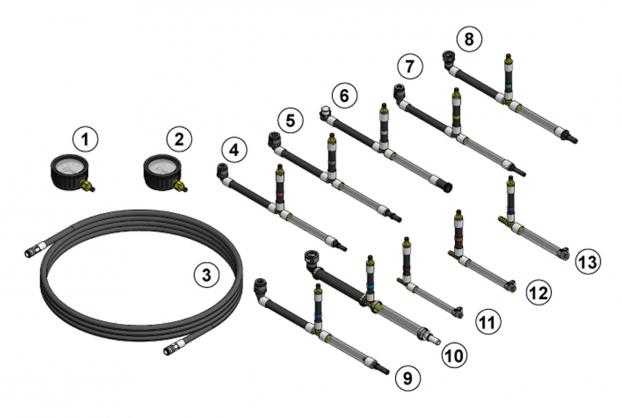

• 1.) Manometer -1 ~ 5 bar. Weight: 208g.
• 2.) Manometer -1 ~ 15 bar. Weight: 208g.
• 3.) Connector Hose (2 meter, Ø 6.0mm, 2pcs). Weight: 290g.
• 4.) T-Connector SAE 8 x 20mm (Red). Weight: 142g.
• 5.) T-Connector SAE 9.5 x 20mm (Grey). Weight: 145g.
• 6.) T-Connector NG8 Type 246 (White). Weight: 138g.
• 7.) T-Connector SAE 8 x 30mm (Yellow). Weight: 145g.
• 8.) T-Connector SAE 10 x 20mm (Green). Weight: 161g.
• 9.) T-Connector SAE 10 x 30mm (Blue). Weight: 181g.
• 10.) T-Connector SAE 11.8 x 25mm (Light Blue). Weight: 175g.
• 11.) T-Connector Ø 6.0mm (Brown). Weight: 76g.
• 12.) T-Connector Ø 8.0mm (Orange). Weight: 96g.
• 13.) T-Connector Ø 10.0mm (Purple). Weight: 95.
