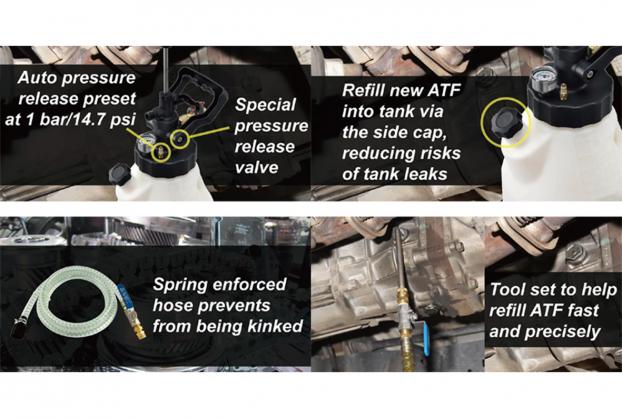

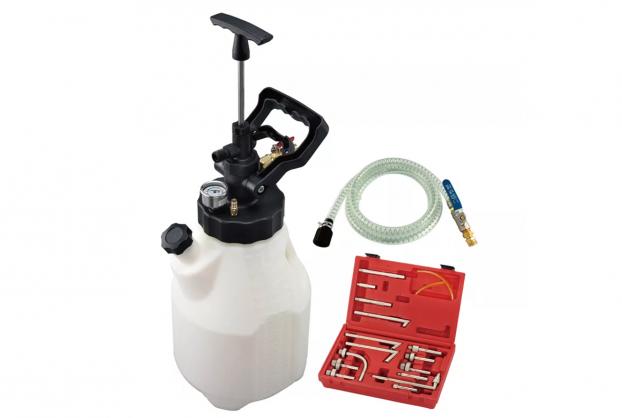

• Designed for refilling ATF, gear oil and differential oil.
• Can be operated pneumatically and manually.

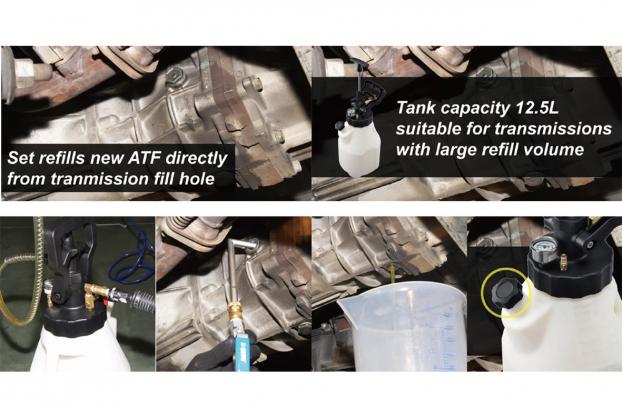

• Large tank (12.5L / 3.3 gallon) are suitable for transmissions that require volume of ATF.
• Tank marked with liter and US quart.
• Provided with 15 adapters for transmissions without a dipstick.

• 1.) Tank With EU Air Connector. Weight: 3.30kgs.
• 2.) Small Lid (Including Seal). Weight: 22.0g.
• 3.) Ø 12.5 x 2000L Hose. Weight: 420.0g.
• 4.) No. 1 Adapter. Weight: 35.5g.
• 5.) No. 2 Adapter. Weight: 14.5g.
• 6.) No. 3 Adapter. Weight: 28.0g.
• 7.) No. 4 Adapter. Weight: 48.5g.
• 8.) No. 5 Adapter. Weight: 52.0g.
• 9.) No. 6 Adapter. Weight: 54.0g.
• 10.) No. 7 Adapter. Weight: 76.2g.
• 11.) No. 8 Adapter. Weight: 114.2g.
• 12.) No. 9 Adapter. Weight: 91.8g.
• 13.) No. 10 Adapter. Weight: 42.2g.
• 14.) No. 11 Adapter. Weight: 63.0g.
• 15.) No. 12 Adapter. Weight: 149.2g.
• 16.) No. 13 Adapter. Weight: 22.8g.
• 17.) No. 14 Adapter. Weight: 83.5g.
• 18.) No. 15 Adapter. Weight: 44.8g.
• 19.) Empty Blow Case (Red). Weight: 544.0g.

• Temperature range: -40 to 80°C.
• Tank does not have vacuum function.
• Tank Material: PP.
• Cap Material: Nylon 6-6 + fiber.
• Adapter Material: Iron tubes.
• Adapter Surface: Nickel plating.
• Hose Material: PVC.
• CE certificate approved by SGS Taiwan.

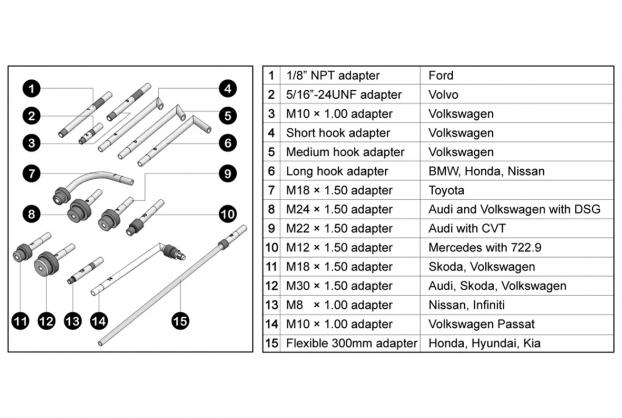

• 1.) 1/8” NPT Adapter. For Ford.
• 2.) 5/16”-24 UNF Adapter. For Volvo.
• 3.) M10 x 1.00 Adapter. For Volkswagen.
• 4.) Short Hook Adapter. For Volkswagen.
• 5.) Medium Hook Adapter. For Volkswagen.
• 6.) Long Hook Adapter. For BMW, Honda, Nissan.
• 7.) M18 x 1.50 Adapter. For Toyota.
• 8.) M24 x 1.50 Adapter. For Audi and Volkswagen with DSG.
• 9.) M22 x 1.50 Adapter. For Audi with CVT.
• 10.) M12 x 1.50 Adapter. For Mercedes-Benz with 722.9.
• 11.) M18 x 1.50 Adapter. For Skoda, Volkswagen.
• 12.) M30 x 1.50 Adapter. For Audi, Skoda, Volkswagen.
• 13.) M8 x 1.00 Adapter. For Nissan. Infiniti.
• 14.) M10 x 1.00 Adapter. For Volkswagen Passat.
• 15.) Flexible 300mm Adapter. For Honda, Hyundai, Kia.
