113-1674

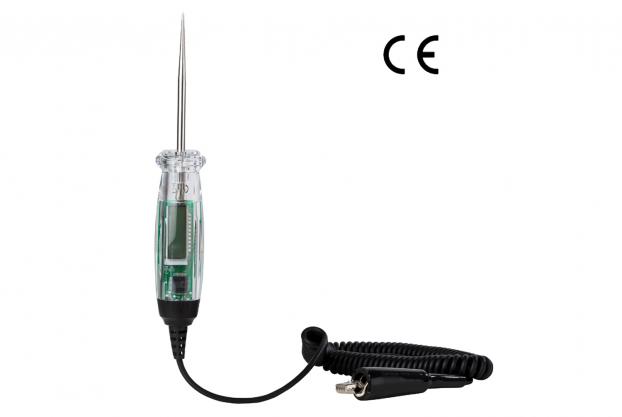

6-48V Digital Circuit Tester

• Checks on 6, 12, 24 and 48V systems.
• With CE Approval.
• Stainless steel testing probe.
• Spring cable, which is able to extend to 3-meter.
• Digital display to read the accurate voltage value.
• LCD indication for Power (Red) and Ground (Green).
• Voltage Range: 6-48V.
• Measurement Range: 4-60V.
• Small Testing Current: < 10mA.
• Display: LCD. Resolution: 0.1V.
• Accuracy: 4-10V ± (1%+5digits). 10-60V ± (1%+3digits).
• Led Indicator: Green (-) / Red (+).
• Cable Length: Spring Cable, Maximum 3M.
• Temperature: 0-50°C. Humidity: < 80%.

• Checks on 6, 12, 24 and 48V systems.
• With CE Approval.
• Stainless steel testing probe.
• Spring cable, which is able to extend to 3-meter.
• Digital display to read the accurate voltage value.
• LCD indication for Power (Red) and Ground (Green).
• Voltage Range: 6-48V.
• Measurement Range: 4-60V.
• Small Testing Current: < 10mA.
• Display: LCD. Resolution: 0.1V.
• Accuracy: 4-10V ± (1%+5digits). 10-60V ± (1%+3digits).
• Led Indicator: Green (-) / Red (+).
• Cable Length: Spring Cable, Maximum 3M.
• Temperature: 0-50°C. Humidity: < 80%.
