• This charger use microprocessor to monitor the charging process.
• Therefore it is a smart charger with protection of reverse connection,
  over-voltage, over-current, short circuit and over-charging.
• It has wide working temperature and it has IP54 protection.

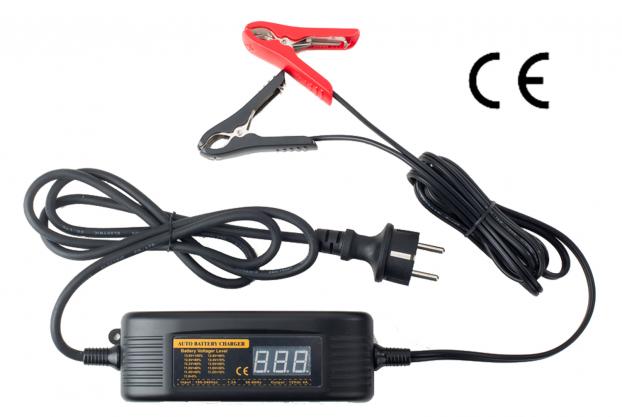

• With CE Approval. AC Power Plug (EU, IP44).
• Alligator Clips (Red / Black).
• 3 digit LED display shows charging voltage.
• Input Voltage: AC180-240V / 50-60Hz. Input Current: 1.2A.
• Output Voltage: 12V. Maximum Output Power: 48W.
• Working Temperature: -10-40°C. Storage Temperature: -20-70°C.
• Working Humidity: ≤ 90%. Charging Method: Stage Charge.
• Battery ≤ 11V Constant small voltage charging.
  Battery > 11V Constant voltage charging.
• Charging Current ≤ 1.5A ≦Constant small current charging.
  Charging Current ≤ 0.5A Pulse charging.
• Battery Type 12V Lead-Acid Battery.
  Product Size 170.5mm x 62.5mm x 47.5mm. IP Level IP54.
• Check battery voltage and volume
  (This charger can charge Lead-Acid battery only.).

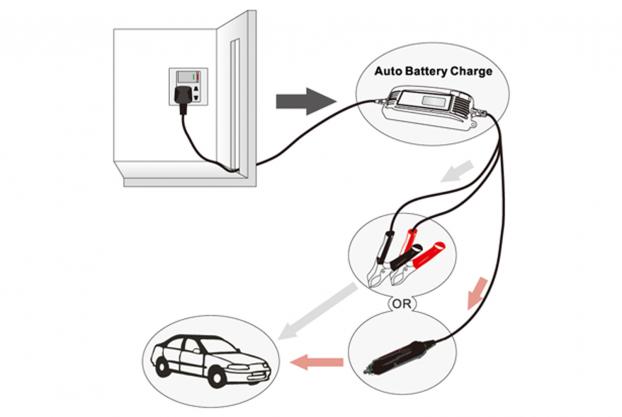

• Connect the AC power plug with AC power source.
• Use alligator clips to connect with battery; red with positive
  and black with negative.
• This display will show the charging voltage and when battery
  is fully charged, the display will show " FUL ".
• Please disconnect AC Power Plug first and then disconnect
  the battery after battery is fully charged.
• When AC power is connected, if battery connection is short or
  reversed in polarity, " ncc " will be shown.
