PRODUCTS

Battery & Electric System

113-7633

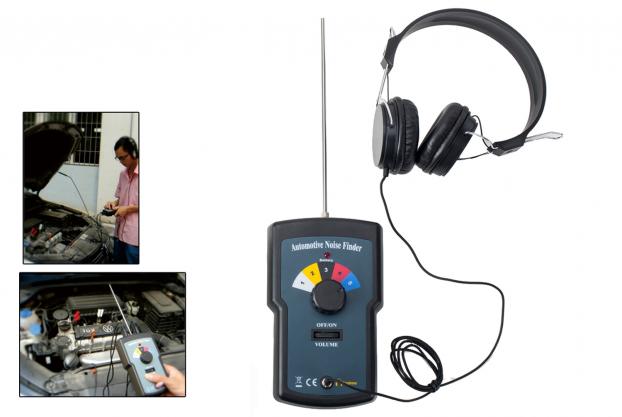

Multi-Channel Automotive Noise Finder

• Multi-Channel automotive noise finder is a portable equipment
  to diagnose the defect of the vehicle.
• When the generator is running, it can detect the impact and vibration
  due to the defect and failure of bearing, gear, valve, crank, cylinder,
  gear box, and vehicle body…etc.
• With this equipment, the repairer can clearly locate which part of the
  machine cause the noise and how serious is it; even though the repairer
  operates the equipment in a very noisy environment.
• With CE Approval. Listen to 5 under chassis locations.
• Super-sensitive stethoscope with test probe.
• Kit includes probe, headphones, 4 alligator clips (2 alligator clips magnet inserted),
  3M cable. 3 AA 1.5 V Batteries (not include). The operation is simple and easy.
• Plug the head-phone connector into the head-phone jack, then clip the four
  different color alligator clips around the defect area of the machine.
• Base on the color and the position of the clips, select the relative channel.
• Switch on the amplifier and tune the volume to hear the sound from the machine.
• Technician can therefore diagnose the machine base on the frequency and
  the pitch of the sound.

• Multi-Channel automotive noise finder is a portable equipment
  to diagnose the defect of the vehicle.
• When the generator is running, it can detect the impact and vibration
  due to the defect and failure of bearing, gear, valve, crank, cylinder,
  gear box, and vehicle body…etc.
• With this equipment, the repairer can clearly locate which part of the
  machine cause the noise and how serious is it; even though the repairer
  operates the equipment in a very noisy environment.
• With CE Approval. Listen to 5 under chassis locations.
• Super-sensitive stethoscope with test probe.
• Kit includes probe, headphones, 4 alligator clips (2 alligator clips magnet inserted),
  3M cable. 3 AA 1.5 V Batteries (not include). The operation is simple and easy.
• Plug the head-phone connector into the head-phone jack, then clip the four
  different color alligator clips around the defect area of the machine.
• Base on the color and the position of the clips, select the relative channel.
• Switch on the amplifier and tune the volume to hear the sound from the machine.
• Technician can therefore diagnose the machine base on the frequency and
  the pitch of the sound.
