• The basic position of the camshaft for a 40 crank angle after top dead center.
• Application: Mercedes-Benz: AMG 156 ML 63, AMG S 63L, AMG S 63,
  AMG R63, AMG L 4 MATIC R63, AMG 4 MATIC E63, AMG CLS 63,
  AMG CLK 63, AMG CLK 63, AMG Black Series CLK 63, AMG Cabriolet CL 63.

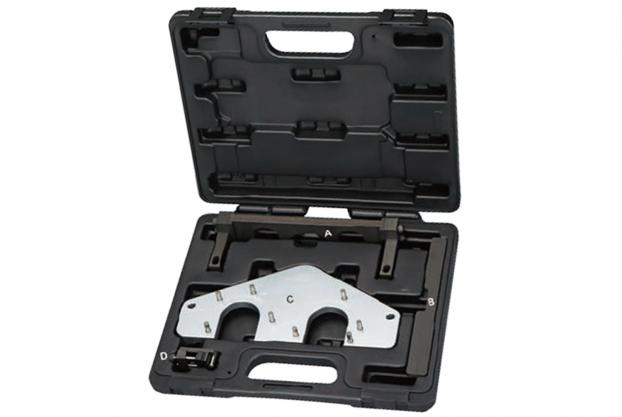

• A.) Camshaft Holding Tool. OEM 156 589 00 61 00.
        Retaining the fixture makes it possible to position the camshaft while installing.
        This allows loosening and tightening of the camshaft gear attachment bolts.
• B.) Camshaft Alignment Tool. OEM: 156 589 00 61 00.
        Retaining the fixture makes it possible to position the camshaft while installing.
        This allows loosening and tightening of the camshaft gear attachment bolts.
• C.) Camshaft Position (CMP) Sensor Disc Setting Tool. OEM: 156 589 00 32 00.
        Use to lock the sensor rotors of the camshaft adjuster during assembing.
• D.) Two Pieces Inlet Camshaft Gear Alignment Tool. OEM: 156 589 01 63 00.
        For fixing the camshaft adjustment gear.
