Mercedes-Benz & BMW Tools
904-5879
• This comprehensive set of tool enables the correct timing position
to be achieved on the both camshaft and crankshaft whilst replacing
the timing belt or the chain on the both petrol and diesel engines.
• Include a special wrench for controlled turning of the exhaust camshaft
sprocket when removing and installing the VANOS unit, and also include
the primary timing chain pre - load tool for tensioning the timing chain on
M50 engine.
• Set enables the correct timing to be made when service BMW M47 2.0 16 engine.

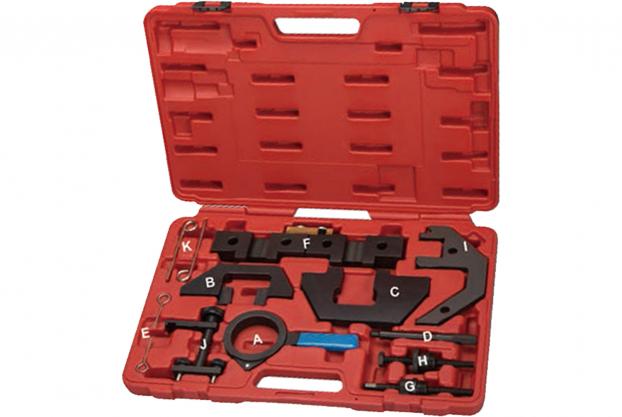

• A.) VANOS Unit Engagement Wrench. OEM: 11 5 490.
• B.) Camshaft Timing Tool - Diesel. OEM: 11 3 320.
• C.) Camshaft Timing Tool - Petrol. OEM: 11 3 190.
• D.) Crankshaft Locking Pin. OEM: 11 2 300.
• E.) Tensioner Holding Pin (2). OEM: 11 3 292.
• F.) Twin Cam Alignment Tool. OEM: 11 3 240.
• G.) Chain Pre-tensioner Tool (Nut and Spindle). OEM: 11 4 220.
• H.) Timing Chain Pre-tension Tool (Nut and Spindle). OEM: 11 3 390.
• I.) Camshaft Aligning Tool. OEM: 11 6 320/12 173.
• J.) Camshaft Aligning Tool Clamp. OEM: 12 174.
• K.) Tensioner Locking Pins. 11 3 340/12 172.
• Model: BMW: 318d (E46) 20 4D 1 M47(00-05), 320d (E46) 20 4D 1 M47(98-02),
330d (E46) 30 6D 1 M57(99-03), 525d (E39) 25 6D 1 M57 (99-04),
530d (E39) 30 6D 1 M57 (98-03), 730d (E38) 30 6D 1 M57 (98-02),
X5 3.0d (E53) 30 6D 1 M57 (00-03).
Land Rover: Freelander Td4 204D3 M47R (00-06), Range Rover Td6 3.0 M57 (02-06).
Rover / MG: 75 CDT/CDTi M47R(99-05), ZT/T 2.0 M47R(01-05).
• Application: M22 Threaded for M42 / M60 engine;
M26 Threaded for M50 / M52 engine.
E46 318D, 320 D, 330D; E39 520D, 525D, 530D; E38 730D.
BMW: Model 316i / 318i / 518i. Engine Code: M40 / M43. Year: 1988-1993.
Model 316iS / 318Ti / 320i / 323i / 325i / 328i / 520i / 523i / 525i / 528i.
Engine Code: M42 / M44 / M50 / M52. Year: 1991-1999.
BMW (Diesel): Model 325 / 525. Engine Code: M51. Year 1996-1999.
Opel: Omega 325 / 525. Style: 2.5 TD. Year: 1994-2002.
Range Rover: 325 / 525. Style: 2.5 DT/SE (6 cylinder). Year: 1994-2002.
• This comprehensive set of tool enables the correct timing position
to be achieved on the both camshaft and crankshaft whilst replacing
the timing belt or the chain on the both petrol and diesel engines.
• Include a special wrench for controlled turning of the exhaust camshaft
sprocket when removing and installing the VANOS unit, and also include
the primary timing chain pre - load tool for tensioning the timing chain on
M50 engine.
• Set enables the correct timing to be made when service BMW M47 2.0 16 engine.
• A.) VANOS Unit Engagement Wrench. OEM: 11 5 490.
• B.) Camshaft Timing Tool - Diesel. OEM: 11 3 320.
• C.) Camshaft Timing Tool - Petrol. OEM: 11 3 190.
• D.) Crankshaft Locking Pin. OEM: 11 2 300.
• E.) Tensioner Holding Pin (2). OEM: 11 3 292.
• F.) Twin Cam Alignment Tool. OEM: 11 3 240.
• G.) Chain Pre-tensioner Tool (Nut and Spindle). OEM: 11 4 220.
• H.) Timing Chain Pre-tension Tool (Nut and Spindle). OEM: 11 3 390.
• I.) Camshaft Aligning Tool. OEM: 11 6 320/12 173.
• J.) Camshaft Aligning Tool Clamp. OEM: 12 174.
• K.) Tensioner Locking Pins. 11 3 340/12 172.
• Model: BMW: 318d (E46) 20 4D 1 M47(00-05), 320d (E46) 20 4D 1 M47(98-02),
330d (E46) 30 6D 1 M57(99-03), 525d (E39) 25 6D 1 M57 (99-04),
530d (E39) 30 6D 1 M57 (98-03), 730d (E38) 30 6D 1 M57 (98-02),
X5 3.0d (E53) 30 6D 1 M57 (00-03).
Land Rover: Freelander Td4 204D3 M47R (00-06), Range Rover Td6 3.0 M57 (02-06).
Rover / MG: 75 CDT/CDTi M47R(99-05), ZT/T 2.0 M47R(01-05).
• Application: M22 Threaded for M42 / M60 engine;
M26 Threaded for M50 / M52 engine.
E46 318D, 320 D, 330D; E39 520D, 525D, 530D; E38 730D.
BMW: Model 316i / 318i / 518i. Engine Code: M40 / M43. Year: 1988-1993.
Model 316iS / 318Ti / 320i / 323i / 325i / 328i / 520i / 523i / 525i / 528i.
Engine Code: M42 / M44 / M50 / M52. Year: 1991-1999.
BMW (Diesel): Model 325 / 525. Engine Code: M51. Year 1996-1999.
Opel: Omega 325 / 525. Style: 2.5 TD. Year: 1994-2002.
Range Rover: 325 / 525. Style: 2.5 DT/SE (6 cylinder). Year: 1994-2002.
