• Installation, removal and timing of variable camshaft timing unit.
• Checking and adjusting of the camshaft timing / belt changing.
• Easily accessible operates instruction, including the cross reference
  to original part number. Spare part is optionally available.
• Clear arrangement of tool in high quality plastic case with soft foam insertion.

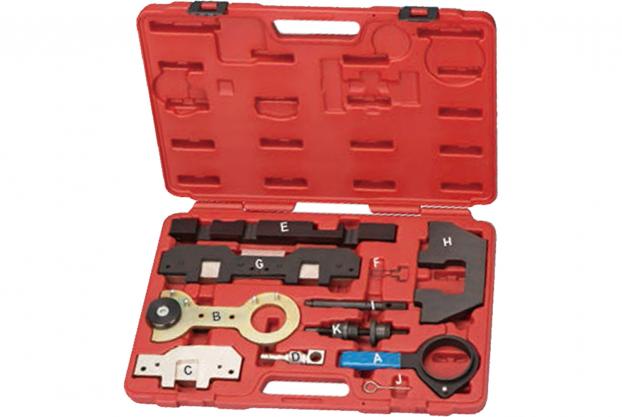

• A.) VANOS Unit Engagement Wrench. OEM: 11 5 490.
• B.) Twin VANOS Setting Tool.    OEM: 11 6 180.
• C.) Timing Adjustment Plate.     OEM: 11 9 110.
• D.) Compressed Air Connector. OEM: 11 3 450.
• E.) Sprocket / Chain Assembly Fixture. OEM: 11 6 150.
• F.) Tensioner Pin (M50).       OEM: 11 3 291.
• G.) Camshaft Setting Plate. OEM: 11 3 240.
• H.) Camshaft Timing Tool.   OEM: 11 3 190.
• I.)  Flywheel Locking Pin.     OEM: 11 2 300.
• J.) Tensioner Locking Tool.   OEM: 11 3 292.
• K.) Pre-load Tool. OEM: 11 3 390, 11 4 220.

• Application:---
  E30: 318iS 16v Bj. 89-91 (M42).
  E34: 518i Bj. 94-96 (M43), 520i Bj. 89-96, 525i Bj. 89-96, 525i Bj.
           89-96 Single Vanos.
  E36: 316i Bj. 93-99, 318iS/Coupe Bj. 92-98, 318i Bj. 93-99 (M43),
           318ti compact Bj. 94-98 (M42), 318iS/Coupe Bj. 96-99,
           318ti compact Bj. 96-01 (M44), 320i Bj. 98-06 twin Vanos (M52),
           323i Compact Bj. 95-01-Single Vanos, 325i bj. 91-97,
           325i Bj.91-97 Single Vanos.
  E38: 328i Bj. 95-99 Single Vanos, 728i Bj. 95-98 Single Vanos,
           728i Bj. 98-02 Twin Vanos
  E39: 520i Bj. 95-99 Single Vanos, 520i Bj. 98-03 Twin Vanos,
           523i Bj. 95-99 Single Vanos, 523i Bj. 98-01 Twin Vanos,
           525i Bj. 00-03 Twin Vanos, 528i Bj. 96-00 Single Vanos,
           528i Bj. 96-01 Twin Vanos (M52), 530i Bj. 00-03 Twin Vanos.
  E43: 520i Bj. 89-96 Single Vanos.
  E46: 316i Bj. 99-04, 316i Compact Bj. 94-01 (M43), 318i Bj. 98-04 (M43),
           320i Bj. 98-06 Twin Vanos (M52), 323i Compact Bj. 95-01 Single Vanos,
           323i Bj. 98-01 Twin Vanos (M52), 325i Compact Bj. 00-06 Twin Vanos,
           328i Bj. 98-01 Twin Vanos, 330i Bj. 00-06 Twin Vanos.
  E53: X5-3.0I Bj. 99-05 Twin Vanos (M54), Z3-1.8i Bj. 96-99, 1.9i Bj. 99-03 (M43/M44),
           2.0i Bj. 99-03 Twin Vanos (M52), 2.2i Bj. 00-03 Twin Vanos (M52), 2.8i Bj. 97-99
           Single Vanos, 2.8i Bj. 00-03 Twin Vanos, 3.0i Bj. 00-03 Twin Vanos (M52).
  E60 / E61: Bj. 03-05 Twin Vanos, 525i Bj. 03-05 Twin Vanos, 530i Bj. 03-05 Twin Vanos.
  E65 / E66: 730i Bj. 02-05 Twin Vanos.
  E83: X3-2.5I Bj. 03-06 Twin Vanos, X3-3.0I Bj 03-06 Twin Vanos.
  E85: Z4-2.2I Bj. 03-06 Twin Vanos, 2.5I 03-06 Twin Vanos, 3.0I Bj.03-07 Twin Vanos.
