904-5889

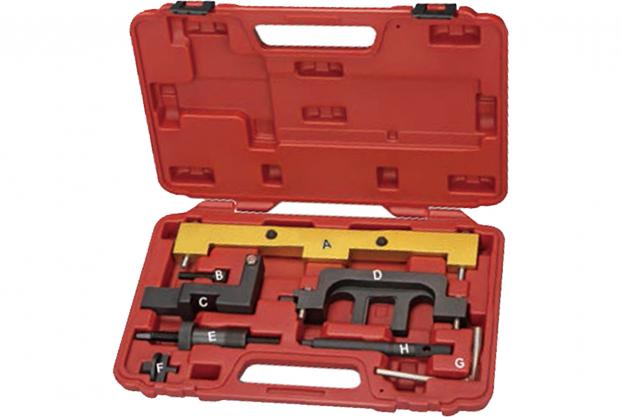

Petrol Engine Setting / Locking Kit For BMW N42 / N46 / N46T 1.8, 2.0 - Chain Drive

• Suitable for setting and adjusting the timing on N42 and N46 engines with
  Valvetronic system.
• Include the tool to align the twin Vanos unit.
• A.) Vanos Alignment Tool. OEM: 11.9.350.
• B.) Exhaust Camshaft Setting Plate Securing Screw. OEM: 11.9.293.
• C.) Inlet Camshaft Setting Plate.       OEM: 11.9.292.
• D.) Exhaust Camshaft Setting Plate. OEM: 11.9.291.
• E.) Chain Pre-tensioning Tool.           OEM: 11.9.340.
• F.) Camshaft Turning Tool.                 OEM: 11.9.270.
• G.) Flywheel Locking Pin.                  OEM: 11.5.120/11.9.190.
• H.) Flywheel Location Pin.                 OEM: 11.2.300.

• Application: BMW: 118i E81/82/87/88 (04-12), 120i E81/82/87/88 (04-12),
  316ti Compact E46 (01-07), 318i/ti Compact E46 (01-07), 318i E90/91/92/93 (05-12),
  320i E90/91/92/93 (05-12), 520i E60/61 (07-10), Z4 2.0 E85/E86 (04-09),
  X1 sDrive 18i E84 (10-12), X1 xDrive 18i E84 (10-12), X3 2.0 E83 (05-10)
• Engine Code: N42/N46/N46T: B18, B18A, B20, B20A, B20B, B20BD, B20BZ, B2O2.

• Suitable for setting and adjusting the timing on N42 and N46 engines with
  Valvetronic system.
• Include the tool to align the twin Vanos unit.
• A.) Vanos Alignment Tool. OEM: 11.9.350.
• B.) Exhaust Camshaft Setting Plate Securing Screw. OEM: 11.9.293.
• C.) Inlet Camshaft Setting Plate.       OEM: 11.9.292.
• D.) Exhaust Camshaft Setting Plate. OEM: 11.9.291.
• E.) Chain Pre-tensioning Tool.           OEM: 11.9.340.
• F.) Camshaft Turning Tool.                 OEM: 11.9.270.
• G.) Flywheel Locking Pin.                  OEM: 11.5.120/11.9.190.
• H.) Flywheel Location Pin.                 OEM: 11.2.300.

• Application: BMW: 118i E81/82/87/88 (04-12), 120i E81/82/87/88 (04-12),
  316ti Compact E46 (01-07), 318i/ti Compact E46 (01-07), 318i E90/91/92/93 (05-12),
  320i E90/91/92/93 (05-12), 520i E60/61 (07-10), Z4 2.0 E85/E86 (04-09),
  X1 sDrive 18i E84 (10-12), X1 xDrive 18i E84 (10-12), X3 2.0 E83 (05-10)
• Engine Code: N42/N46/N46T: B18, B18A, B20, B20A, B20B, B20BD, B20BZ, B2O2.
