• Special design locates and turns the camshaft in the correct TDC position.
• The timing tool is designed to hold the camshaft pulley for turning the central bolt.

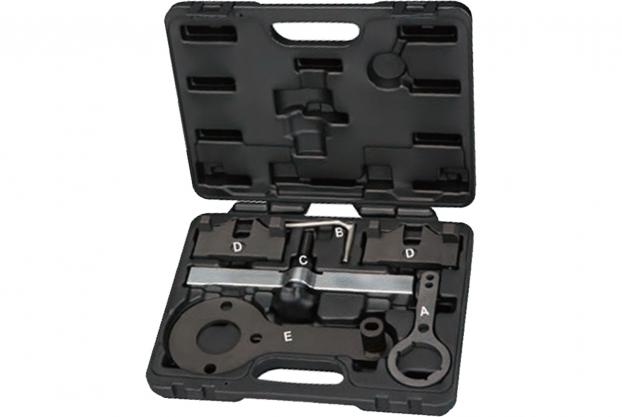

• A.) Crankshaft Alignment Tool. OEM: 11 8 570.
• B.) Crankshaft Timing Pin.        OEM: 11 9 190.
• C.) Camshaft Alignment Tool Retaining Bolt and Holder. OEM: 11 9 891,11 9 892.
• D.) Camshaft Alignment Tool (2). OEM: 11 9 893.
• E.) Crankshaft Holder for BMW.   OEM: 11 8 090.

• Application: BMW N63 / S63 / N74 engine. Use to align the camshaft.
• 750i:
  Chassis Series: F01. Engine: N63/S63/N74. Year: 2009, 2010, 2011, 2012.
• 750i xDrive Sedan:
  Chassis Series: F01. Engine: N63/S63/N74. Year: 2010, 2011, 2012.
• 750Li:
  Chassis Series: F02. Engine: N63/S63/N74. Year: 2009, 2010, 2011, 2012.
• 750Li xDrive Sedan:
  Chassis Series: F02. Engine: N63/S63/N74. Year: 2010, 2011, 2012.
• BMW ALPINA B7:
  Chassis Series: F01. Engine: N63/S63/N74. Year: 2011, 2012.
• BMW ALPINA B7 xDrive:
  Chassis Series: F01. Engine: N63/S63/N74. Year: 2011, 2012.
• BMW ALPINA B7 LWB, BMW ALPINA B7 xDrive LWB:
  Chassis: F02. Engine: N63/S63/N74. 2011, 2012.
• Active Hybrid 750Li, Active Hybrid 750i:
  Chassis Series: F04. Engine: N63/S63/N74. Year: 2011, 2012.
• 550i Gran Turismo:
  Chassis Series: F07. Engine: N63/S63/N74. Year: 2010, 2011.
• 550i xDrive Gran Turismo:
  Chassis Series: F07. Engine: N63/S63/N74. Year: 2011.
• 550i Sedan, 550i Sedan A, 550i xDrive Sedan, 550i xDrive Sedan A:
  Chassis Series: F10. Engine: N63/S63/N74. Year: 2011.
• 650i Convertible A, 650i Convertible, 650i xDrive Convertible A:
  Chassis Series: F12. Engine: N63/S63/N74. Year: 2012.
• 650i Coupe, 650i Coupe A, 650i xDrive Coupe A::
  Chassis Series: F13. Engine: N63/S63/N74. Year: 2012.
• 550i GT: Chassis Series: F07. Engine: N63/S63/N74. Year: 2010-2013.
• 750i:       Chassis Series: F01. Engine: N63/S63/N74. Year: 2009-2013.
• 750Li:     Chassis Series: F02. Engine: N63/S63/N74. Year: 2009-2013.
• X5.                 Engine: N63/S63/N74. Year: 2011-2013.
• X5 M / X6 M. Engine: N63/S63/N74. Year: 2010-2013.
• X6.                  Engine: N63/S63/N74. Year: 2008-2013.
