• The essential tool for the timing BMW / Mini N47 / N57 1.6, 2.0 and 3.0
  diesel chain drive engines.

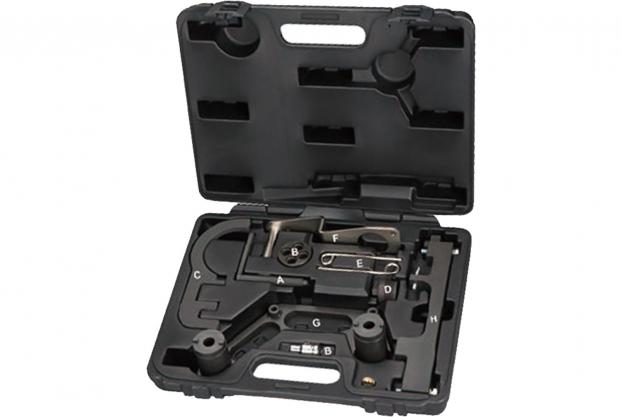

• The kit includes camshaft setting plate, flywheel timing pin and crankshaft
  turning tool, and also includes HP pump sprocket retaining tool required
  during the pump removal / replacement application.

• A.) Flywheel Locking Pin. OEM: 11.5.320.
• B.) Crankshaft Turning Tool. OEM: 11.6.480.
• C.) Camshaft Setting Plate. OEM: 11.8.760.
• D.) HP Pump Sprocket Retaining Tool. OEM: 11.8.740.
• E.) Flywheel Timing Pin. OEM: 11.3.340.
• F.) Crankshaft Holding Tool. OEM: 11.4.320.
• G.) Gauge. OEM: 11 8 750.
• H.) Gauge. OEM: 11 8 790.

• Application (Model):---
  BMW: 114d F20/21 1.6D (12-14), 116d E81/82/87/88 (08-12),
             116d F20/21 2.0D (11-13), 118d E81/82/87/88 2.0D (07-14),
             118d F20/21 2.0D (11-13), 120d 2.0D E81/82/87/88 (07-14),
             120d/xDrive F20/21 2.0D (11-13), 123d E81/82/87/88 2.0D (07-14),
             125D F20/21 2.0D (12-13), 316d E90/91/92/93 2.0D (09-12),
             316d F30/31 2.0D (12-13), 318d E90/91/92/93 2.0D (07-12),
             318d F30/31 2.0D (12-13), 318D F30/31 2.0D (12-13),
             320d E90/91/92/93 2.0D (07-12), 320d/xDrive F30/31 2.0D (12-13),
             320d/Efficient Dynamics E90/91/92/93 2.0D (10-12),
             325d E90/91/92/93 3.0D (10-14), 330d E90/91/92/93 3.0D (08-13),
             330d/xd E90/91/92/93 (08-14), 520d E60/61 2.0D (07-10),
             520d F10/11 2.0D (10-13), 520d/Efficient Dynamics F10/11 2.0D (11-13),
             520d/xDrive F10/11 2.0D (11-13), 525d F10/11 3.0D (10-12),
             530d F10/11 3.0D (10-13), 530d/xDrive F10/11 3.0D (11-13),
             530dGT F07 (09-12), 530d/xDrive GT F07 3.0D (09-12),
             535d F10/11 3.0D (10-12), 535d/xDrive GT F07 3.0D (10-12),
             535d/xDrive F10/11 3.0D (11-13), 535dGT F07 (10-12),
             640d/xDrive F12/13 3.0D (11-13), 730d F01/02/04 3.0D (08-12),
             730d/Ld F01/02/04 (08-12), 730d/xDrive F01/02/04 3.0D (09-12),
             740d F01/02/04 (09-12), 740d xDrive F01/02/04 (09-12),
             M550d/xDrive F10/11 3.0D (12-13) X1 E84 2.0D (09-13),
             X1 F84 2.0D (09-13), X1 sDrive 18d E84 (09-12),
             X1 sDrive 20d E84 (09-12), X1 xDrive 18d E84 (09-14),
             X1 xDrive 20d E84 (09-12), X1 xDrive 23d E84 (09-12),
             X3 E83 2.0D (07-10), X3 F25 2.0D (11-13), X3 F25 3.0D (11-13),
             X3 xDrive 18d E83 (08-10), X3 xDrive 30d E83 (11-12),
             X5 E70 3.0D (10-12), X5 xDrive 40d E70 (10-13),
             X6 E71/72 3.0D (10-13), X6 xDrive 30d E71/72 (10-14),
             X6 xDrive 40d E71/72 (10-14).
  Mini: Clubman (10-14), Clubvan (12-14), Countryman (10-14), Mini (10-14),
           Paceman (13-14), Roadster (12-14).

• Engine Code:---
  N47/N47S: C16K1, C16U1, C20K1, C20U1, D16, D20A, D20A/O0,
                      D20A/0U0, D20B, D20C, D20C/K1, D20C/O1, D20C/U1,
                      D20D/T0, D20D/T1, D20O0, D20O1, D20C/O1, D20T0,
                      D20U0, SD20B/D/T0, TD20K1, TD20U1.
  N57: D30A, D30A/O0, D30B/TO, D30C/S1, D30B/T0, D30O0, D30O1,
           D30TO, D30T0, D30UO, D30U0.
