• For BMW / Mini N47 / N57 1.6, 2.0, 3.0 - Chain Drive

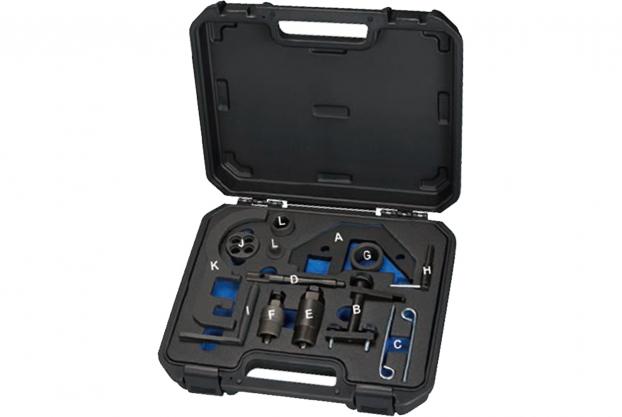

• A.) Camshaft Aligning Tool. OEM-BMW: 11 6 321.
        OEM-Land Rover/Rover/MG: 12 173.
        OEM-Vauxhall/Opel: KM-6267.
• B.) Camshaft Aligning Tool Clamp. OEM-BMW: 11 6 322.
        OEM-Land Rover/Rover/MG: 12 174.
        OEM-Vauxhall/Opel: KM-6267.
• C.) Tensioner Locking Pins. OEM-BMW: 11 3 340.
        OEM-Land Rover/Rover/MG: 12 172.
        OEM-Vauxhall/Opel: KM-823.
• D.) Flywheel Timing Pin. OEM-BMW: 11 2 300.
        OEM-Land Rover/Rover/MG: 12 108, 12 171.
        OEM-Vauxhall/Opel: KM-813.
• E.) Injection Pump Extractor. OEM-BMW: 13 5 190.
• F.) Injection Pump Extractor.  OEM-BMW: 13 5 191.
• G.) Injection Pump Shaft.       OEM-BMW: 13 5 192.
• H.) Flywheel Timing Pin (ψ8 / ψ8.2 30 mm L). OEM-BMW: 11 5 180.
• I.)  Flywheel Locking Pin. OEM-BMW/Mini: 11.5.320.
• J.) Crankshaft Turning Tool 11.6.480
• K.) Camshaft Setting Plate 11.8.760
• L.) HP Pump Sprocket / Retaining Tool. OEM-BMW/Mini: 11.8.740.

• Camshaft aligning and flywheel locking tools to cover BMW, Land Rover,
  Rover & MG, and Vauxhall/Opel models.
• The essential tool for the timing BMW/Mini N47/N57 1.6, 2.0 and 3.0
  diesel chain drive engines.
• The kit includes camshaft setting plate, flywheel locking pin and crankshaft
  turning tool, and also includes HP pump sprocket retaining tool required
  during the pump removal/replacement application.

• Camshaft Aligning Tool & Camshaft Aligning Tool Clamp & Tensioner
  Locking Pins & Flywheel Timing Pin & Flywheel Timing Pin
  (ψ8 /ψ8.2 30 mm L). This set enables the correct timing to be made when
  servicing BMW M47 2.0 16 engine.
• Model:---
  BMW: 118d (E87) (04-07), 120d (E87) (04-07), 318d/td Compact E46 (01-05),
             318d/td E90/91 (05-08), 320d/td Compact E46 (98-05),
             320d/cd E90/91 (05-08), 325d E90/91/92/93 (02-10),
             330d/cd E46/90/91/92/93 (99-07), 335d E90/91/92 (06-11),
             520d E39/60/61 (00-09), 525d/xd E39/60/61 (00-10),
             530d/xd E46/60/61 (98-10), 535d E60/61 (04-10), 635d E63/64 (07-11),
             730d/ld E38/65/66 (98-08), X3 2.0d E83 (04-07), X3 3.0d/sd E83 (03-10),
             X5 3.0d E53/E70 (00-10), X6 3.0d E71/72 (08-10), X6 3.5d E71/72 (08-10).
  Vauxhall / Opel: Omega - B (01-03).
  Land Rover: Freelander TD4 (00-06), Range Rover TD6 (02-06),
                      Rover MG-ZT/T (01-05), Rover 75 CDT/CDTi (99-05).

• Diesel Engine Setting/Locking Kit -
  BMW/ MINI N47/N57 1.6, 2.0, 3.0 - Chain Drive.
• Model:---
  BMW: 116d E81/82/87/88 (08-12), 118d E81/82/87/88 (07-14),
             120d E81/82/87/88 (07-14), 123d E81/82/87/88 (07-14),
             316d E90/91/92/93 (09-12), 318d E90/91/92/93 (07-12),
             320d E90/91/92/93 (07-12), 325d E90/91/92/93 (10-14),
             330d/xd E90/91/92/93 (08-14), 520d E60/61 (07-10),
             525d F10/11 (10-12), 530d F10/11 (10-13), 530dGT F07 (09-12),
             535d F10/11 (10-12). 535dGT F07 (10-12), 730d/Ld F01/02/04 (08-12),
             740d F01/02/04 (09-12), 740d xDrive F01/02/04 (09-12),
             X1 sDrive 18d E84 (09-12), X1 sDrive 20d E84 (09-12),
             X1 xDrive 18d E84 (09-14), X1 xDrive 20d E84 (09-12),
             X1 xDrive 23d E84 (09-12), X3 2.0d E83 (07-10),
             X3 xDrive 18d E83 (08-10), X3 xDrive 30d E83 (11-12),
             X5 3.0d E70 (10-12), X5 xDrive 40d E70 (10-13),
             X6 xDrive 30d E71/72 (10-14), X6 xDrive 40d E71/72 (10-14).
  Mini: Clubman (10-14), Clubvan (12-14), Countryman (10-14), Mini (10-14),
           Paceman (13-14), Roadster (12-14)
• Engine Code: BMW: M47, M47T2, M57, M57TU, M57T2.
  Land Rover: 204D3/TD4, 306D1/TD6. Rover / MG: M47R.
  Vauxhall / Opel: Y25DT.
• Flywheel Locking Pin & Crankshaft Turning Tool & Camshaft Setting
  Plate & HP Pump Sprocket Retaining Tool.
  N47/N47S: C16K1, C16U1, C20K1, C20U1, D20A, D20B, D20O0, D20T0,
                     D20U0. N57: D30O0, D30O1, D30T0, D30U0.
