• The tester provides a simple yet effective and accurates setting up based
  on thickness of the belt.
• The tester enables the operator to quickly assess the correct timing belt
  tension for each individual application by using the special belt thickness
  gauge supplied in the kit to select the appropriate calibration button for the
  correct setting up of tenstion tester.
• The belt tension status is clearly indicated by position of the tester plunger.

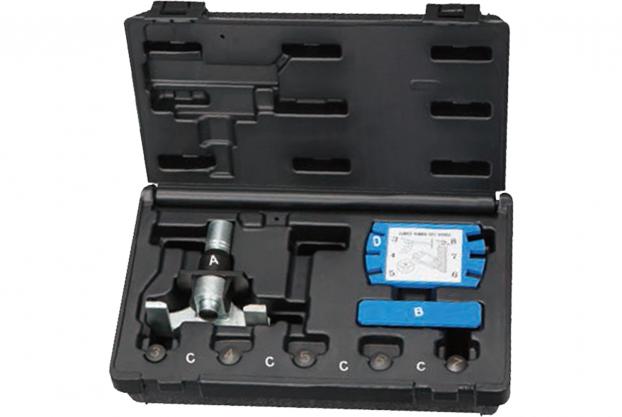

• A.) Tension Tester.
• B.) Test Plate.
• C.) Calibration Button (set of 6).
• D.) Belt Thickness Gauge.
• Application: Universal toothed timing belt up to 30 mm wide.
