• Identify Injector ” Blow-By ” exists.
• Gain access to the Injectors and remove them.
• Select required reamer onto pilot post and thigh the Internal hex screw.
• Using the T-Bar and socket supplied apply only a small amount of pressure
  while the cutter In a clockwise direction only.
• Use a small amount of light lubricant whilst.
• Thoroughly clean the seat and remove all swarf.
• Performing the cut to reduce cha and help give a flat cut.
• Place assembled cutter into injector recess.
• Do Not over cut the seat only remove enough metal to form a good seat.

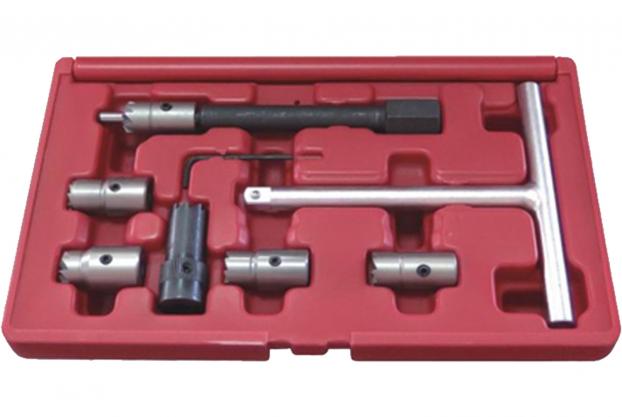

• Content: Φ19mm x Φ15mm Flat reamer for universal Injector.
  Φ17mm x Φ17mm Angled reamer for Fiat, Iveco amd Ford.
  Φ17mm x Φ17mm Flat reamer for Delph / Bosch injectors (BMW, PSA, Renault, Ford).
  Φ19mm x Φ17mm Flat reamer for Bosch injectors (Mercedes-Benz CDI).
  Φ21mm x Φ17mm Angled reamer for Fiat, Iveco.
  Φ19mm x Φ50mm Injector cleaner reamer. T-Handle x 1. Pilot Post x 1.
