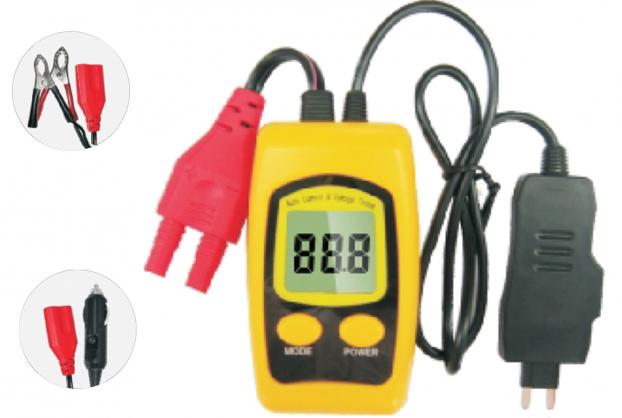

•Fast, accurate and safe current measurement at the fuse box.
•Ideal for fault-finding on car and commercial vehicle electrical circuits.
•Large LCD display plus straight intot the vehicle’s fuse board.
•Current Test:---
 Maximum Load: 20A/48Vdc for 10 seconds.
 Accuracy: ±2% or 0.2 reading with a decimal point.
•Voltage Test:---
 Test Range: 1~48V.
 Accuracy: ±1% or 0.1 reading with a decimal point.
 Indication of wrong connection: when the positive or negative pole is connected reversely or the tested voltage is less than 1V, the LCD would indicate ”Err”.
 Continuity Test: during the conducting voltage test, the resistance between the measured objects is less than 1K, LCD would indicate ”Err”.
•Operated by one AAA 1.5V battery.
