• This kit is originally specified for the engine design before 2003.
• However, some components are used on the engine up to 2010.
• The essential tool is for the timing belt replacement on a wide range
  of Renault, Nissan and Vauxhall / Opel diesel engine.
• This locking tool enables the diesel pump to be locked in the position
  whilst servicing the timing belt on Renault 1.9 DTi engine.

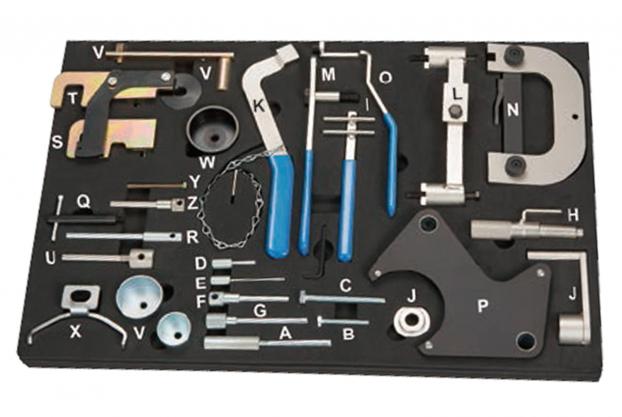

• A.) Crankshaft Locking Pin (1.4/1.6). OEM: MOT 1489.
• B.) Tensioning Adjustment Screw M6 x 30 mm.
• C.) Tensioning Adjustment Screw M8 x 70 mm.
• D.) Crankshaft Timing Pin.        OEM: MOT 910.
• E.) Injection Pump Setting Pin. OEM: MOT 910.
• F.) Flywheel Locking Pin.  OEM: MOT 1054.
• G.) Flywheel Locking Pin. OEM: MOT 1318.
• H.) Flywheel Locking Pin. OEM: MOT 1340.
• I.)  Tension Wrench.     OEM: MOT 1135-01.
• J.) Tensioner Adjuster. OEM: MOT 1386.
• K.) Tensioner Adjuster. OEM: MOT 1348.
• L.)  Camshaft Locking Tool. OEM: MOT 1337.
• M.) Tensioner Adjuste.        OEM: MOT 1312.
• N.) Camshaft Locking Tool. OEM: MOT 1496.
• O.) Tensioner Adjuster Alignment Tool. OEM: MOT 1490-01.
• Q.) High Pressure Pump Locking Pin.  OEM: MOT 1538.
• R.) Crankshaft Alignment Pin.              OEM: MOT 1536.
• S.) Exhaust Camshaft Alignment Tool. OEM: MOT 1537.
• T.) Inlet Camshaft Alignment Tool. OEM: MOT 1534.
• U.) Crankshaft Timing Pin.       OEM: MOT 1489.
• V.) Tensioner Pre-setting Tool. OEM: MOT 1543.
• W.) Timing Belt Tensioning Cover.     OEM: MOT 1705.
• X.) Timing Injection Pump Holder.      OEM: MOT 1200-01.
• Y.) M6 Tensioning Adjustment Screw. OEM: M6 x 30 mm.
• Z.) Flywheel Locking Pin. OEM: MOT 1054.

• Application:---
  Petrol: 1.2L | 1.4L | 1.7L plus twin cam 1.4L | 1.6L | 1.8L | 2.0L 16v
  and 2.2L 8v plus 2.5 20v.

• Model:---
  Clio 1.2/1.4, Clio 1.4/1.6/1.8 16v, Clio Sport 2.0 16v, Clio Williams 2.0 16v,
  Espace 2.0, Espace 2.0 16v, Espace 2.2 TD, Express 1.4, Extra 1.4,
  Kangoo 1.2/1.4, Laguna 1.6 16v, Laguna 1.8/2.0, Laguna 1.8/2.0 16v,
  Laguna 2.2 D/TD, Laguna 2.5 D/TD, Megane 1.4/1.6/2.0/ 16v,
  Megane 2.5D/TD, R19 1.4, R19 1.4 Eco, R19 1.8 16v, Rapid 1.4,
  Safrane 2.0 16v, Safrane 2.2 TD, Safrane 2.5 20v, Scenic 1.4/1.6/2.0 16v,
  Trafic 2.5D, Twingo 1.2.

• Diesel: 1.9L D / TD / DTi | 2.1L & 2.2L D / TD | 2.5L D / TD | 2.8L D
• Engine Code: F4P, F4R, F4J, K4M (Clio III 813 Engine (03-).
  Renault: Clio, Megane (99-03), Scenic (99-03), Laguna (99-01),
                Espace (00-08), Kangoo (00-08), Trafic (01-08), Master (99-04).
  Nissan: Micra K12 (03-08), Kubista (03-08), Primastar (02-07),
               Interstar (02-06).
  Opel: Vivaro (01-08), Movano (00-08).
• Engine Code: 1.5, 1.9, 2.2, 2.5 DCi (K9K, K9Q, G9T, G9U).
  Prevent the engine shafts (camshaft, crankshaft) from turning belt tensioner
  when changing the timing belt or during other engine repair.

• Timing Injection Pump Holder: The injection pump locking tool
  for Renault Clio, Megane, Laguna, Kangoo 1.9 DTi engines.
• Engine Code: F9Q 717/731/780.
