Motorcycle Repair Tools
251-4359

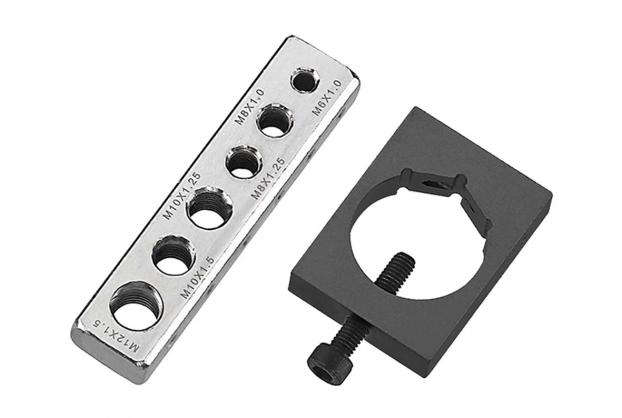

Safety Wire Nut And Metric Bolt Drill Jig Kit
• Kit contains one nut drill jig and one metric bolt drill jig.
• It will accept up to a 3.5mm diameter.
• Nut Drill Jig allows the safety wire holes to be drilled through the head
of bolts or through nuts, across the diagonal easily.
• Metric Bolt Drill Jig provides 6 drill holes for metric sizes:
6 x 1.0, 8 x 1.0, 8 x 1.25, 10 x 1.25, 10 x 1.5 and 12 x 1.5 bolts.
• Drill bit is not included.
• Kit contains one nut drill jig and one metric bolt drill jig.
• It will accept up to a 3.5mm diameter.
• Nut Drill Jig allows the safety wire holes to be drilled through the head
of bolts or through nuts, across the diagonal easily.
• Metric Bolt Drill Jig provides 6 drill holes for metric sizes:
6 x 1.0, 8 x 1.0, 8 x 1.25, 10 x 1.25, 10 x 1.5 and 12 x 1.5 bolts.
• Drill bit is not included.
