954-1927

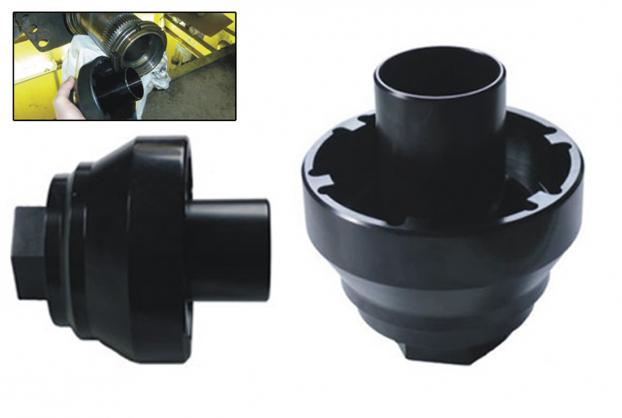

Groove Nut Socket With 6 Stud
← →
Qty :
Add to Inquiry List
•Internal square drive to DIN 3121 / ISO 1174.
•Six sided drive SW 60.
•Application Range: Man TGA Front Axle, V9-82L-01 (disk brake/ABS)...etc.
•Optional with sleeve locating tube.
•High accuracy of fit. Special steel.
•Suitable for high tightening and loosening torque.
•Extremely robust execution.
•Inner Diameter: 134mm.
•Outer Diameter: 147mm.
•Height: 160mm.
•Stud Diameter: 118mm.
•Stud: 6.
•Stud Width: 12mm.
•Weight: 4.652kgs.
•Internal square drive to DIN 3121 / ISO 1174.
•Six sided drive SW 60.
•Application Range: Man TGA Front Axle, V9-82L-01 (disk brake/ABS)...etc.
•Optional with sleeve locating tube.
•High accuracy of fit. Special steel.
•Suitable for high tightening and loosening torque.
•Extremely robust execution.
•Inner Diameter: 134mm.
•Outer Diameter: 147mm.
•Height: 160mm.
•Stud Diameter: 118mm.
•Stud: 6.
•Stud Width: 12mm.
•Weight: 4.652kgs.
