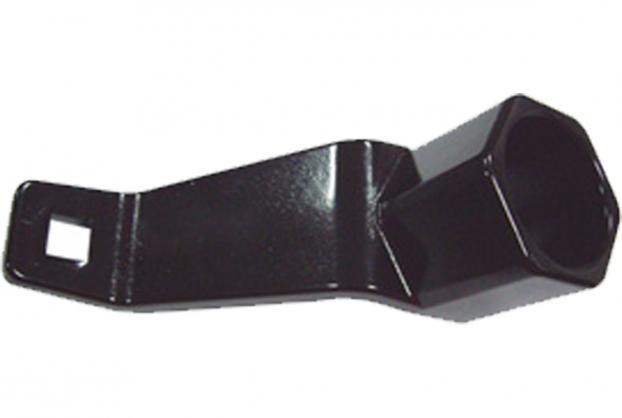

•This unique tool has been developed to aid in the removal and installation of the crank bolt on most Honda and Acura engines.

•It has been re-enginered to work on 2004 and later newer style SUV’s with a 50mm damper pulley as well as previous models serviced.

•In operation with the use of a 1/2” breaker bar or ratchet this tool holds the harmonic damper pulley from rotating when removing and setting the final torque specification on the pulley bolt.

•There is a hole in the center of the tool to allow the use of a socket and extension to break loose or tighten the pulley bolt.



•Application: for Honda. Accord 2.2 4-cylinder 90-97, 2.7L V-6 96-97, 2.3L 4-cylinder 98-02, 2.4L 4-cylinder 03 & later, 3.0L V-6 98 & later. Civic 1.6L 4-cylinder 92-00, 1.7L 4-cylinder 01 & later, 2.0L 4-cylinder 03 & later. CRV 2.0L 4-cylinder 97-01, 2.4L 4-cylinder 02 & later. DEl SOL 1.6L 4-cylinder 93-97. Insight 1.0L 3-cylinder 00 & later. Odysey 2.2L 4-cylinder 95-97, 2.3L 4-cylinder 98, 3.5L V-6 99 & later. Pilot 3.5L V-6 03 & later. Ridgeline 3.5L V-6 06 & later. Prelude 2.2L 4-cylinder 92-01, 2.3L 4-cylinder 92-96. S2000 2.0L 4-cylinder 00-03, 2.2L 4-cylinder 04 & later. Element 2.4L 4-cyliner 03 & later.



•Application: For Acura. CL 2.2L 4-cylinder 97, 3.0L V-6 97-99, 3.4L 4-cylinder 98-99, 3.2L V-6 00-03, Integra 1.6L 4-cylinder 90-92, 1.7L 4-cylinder 92-93, 1.8L 4-cylinder 93-01. Legend 3.2L V-6 91-95. MDX 3.5L V-6 91-95. RL 3.5L V-6 96 & later. RSX 2.0L 4-cylinder 92 & later. TL 3.2L V-6 95 & later. TSX 2.4L 4-cylinder 04 & later. RDX 2.3L 4-cylinder Turbo 06 & later.
